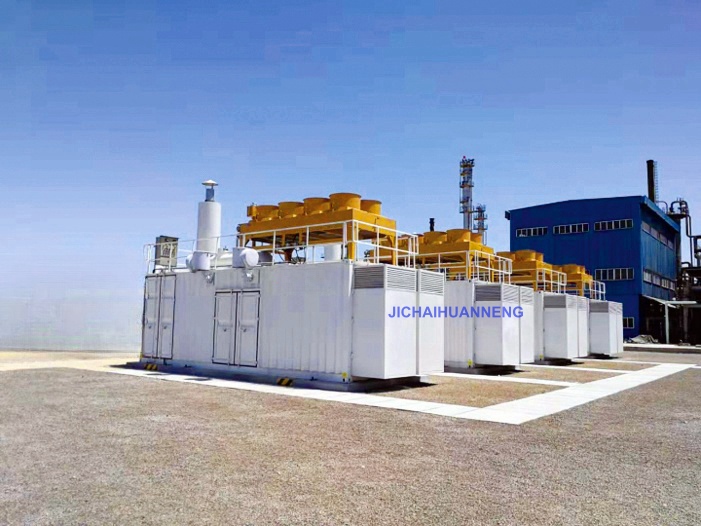

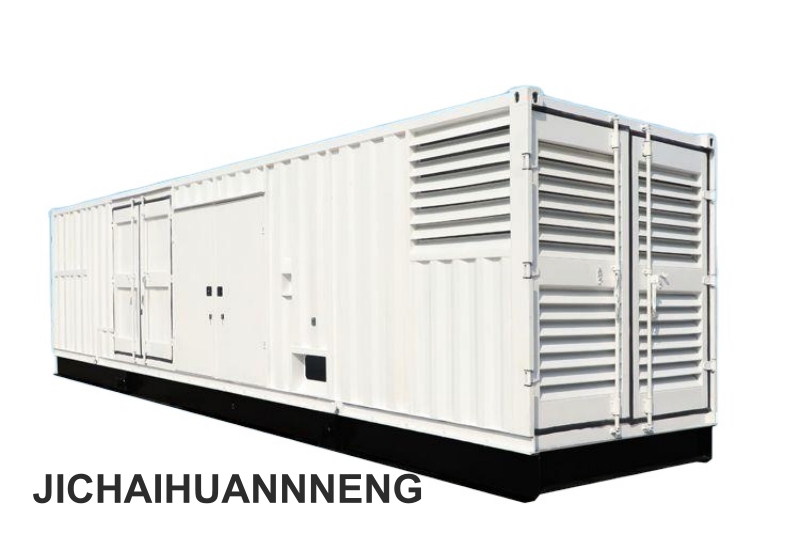

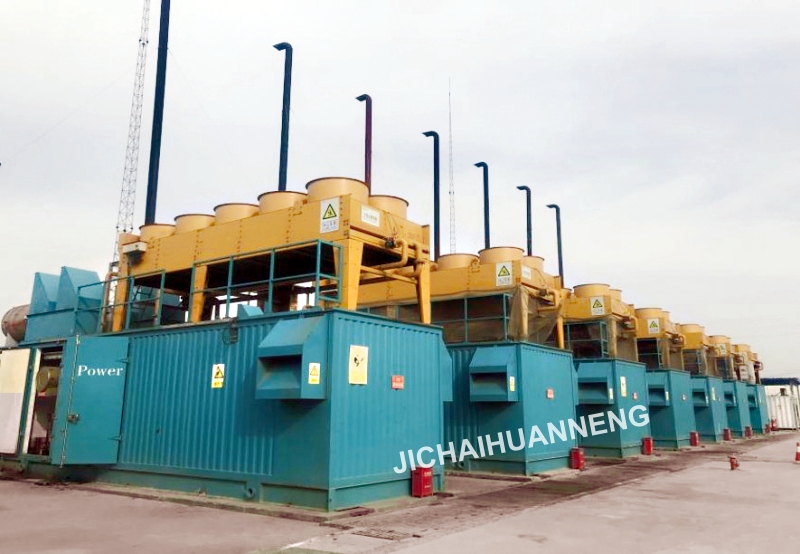

1000kW Container Type Biogas Engine Generator
1、High quality
2、Long usage life
3、Easy operation
4、Low maintenance cost

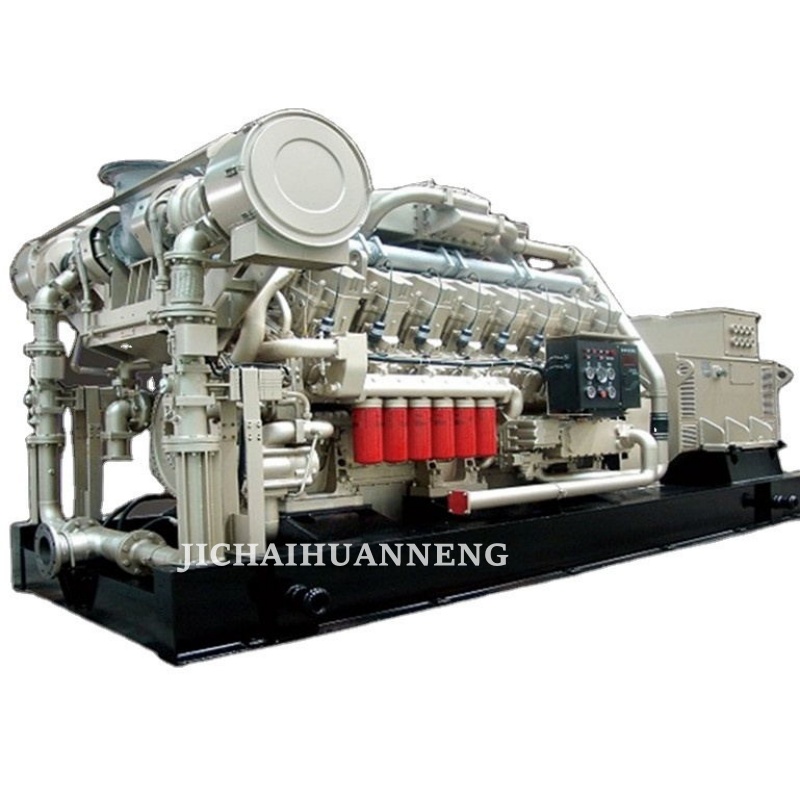

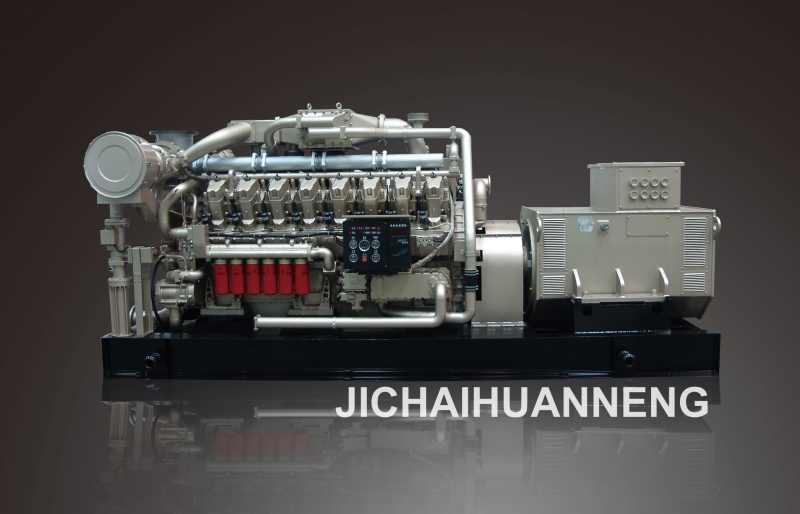

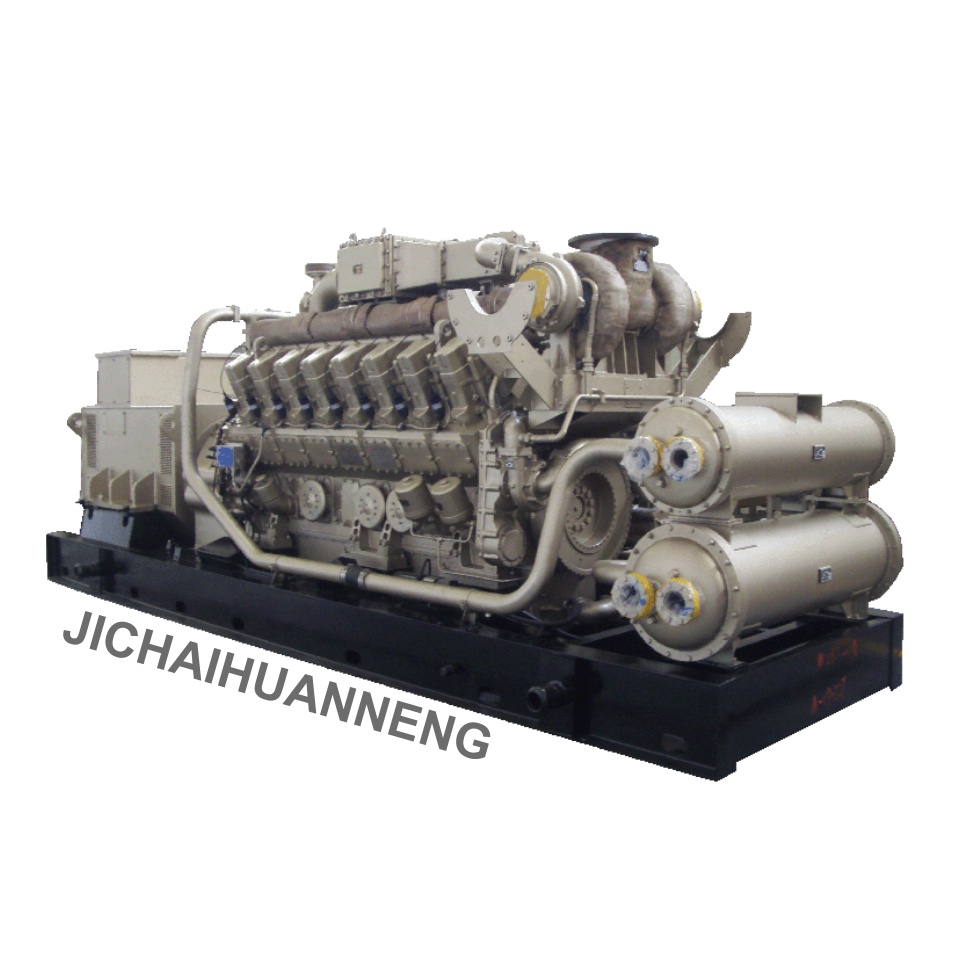

1000kW Container Type Biogas Engine Generator is equipped with L12V190ZLT Gas engine made by Jinan Diesel Engine Company, Ltd. as original power.It is consisted of brush-less three-phase synchronous alternator, which is produced in China with Siemens technology and Control Panel made by advanced manufacturing plant.
Main specification of gas generator
Genset model | 1000GF-Z |
Alternator model | Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1000 |
Rated power | 1000KW |
Rated voltage | 400V/480V/6300V/10500V/13800 |
Rated frequency | 50/60HZ |
Electrical efficiency | ≥36% |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Stabilized frequency regulation | 0-5% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 6198mm*2540mm*2180mm |
Net weight | 21000kg |
Main specification of gas engine
Engine model | G16V190ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 16 |
Bore | 190mm |
Stoke | 215mm |
Total displacement | 97.53L |
Rated speed | 1000/1200r/min |
Rated power | 1200KW |
Idle speed | 700r/min |
Gas pressure | 10-40KPa |
Gas consumption | ≤9500kJ/kW·h |
Oil consumption | ≤0.6g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood
| Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Overhaul period | 40000h |
