1MW Gas Generator Powered by LNG CNG

State-of-the-art Technology

Higher Energy Efficiency

Sustainable High Performance

Ease of Serviceability

Longer Service Life

Cleaner Emissions


  Contact Now E-Mail Telephone
Product Details

Jichai Brand Generator is designed and manufactured to be state-of-the-art technology,higher energy efficiency,sustainable high performance,ease of serviceability,longer service life,cleaner emissions.

Model of generating set

1000GF-T

Model of engine

16V190ZDT-2

Rated power(kw)

1000

Rated speed      r/min.

1000

Rated voltage (V)

415/240

Rated frequency (Hz)

50/60

Rated power factor

0.8

Supply method

3 phases 4 wires

Excitation method

brushless

Starting method

24V DC starter

Speed modulate method

Electronic control

Cooling method

Water cooling system

Net weight Net weight (kg)

11800

2.Main Specification of Alternator

Model

1FC5456-6TA42

(SIEMENS technology)

Rated power(kw)

500

Rated voltage(V)

415

Rated current(A)

870

Rated frequency(Hz)

50/60Hz

Power factor

COS=0.8(lagging)

Rated speed

1000 r/min

Efficiency

95 %

Phase

3

Connection

3 phases 4 wires

Excited method

brushless

Insulation class

F

Class of protection

IP23

Cooling

A fan at the drive end draws the cooling air

Working model

Continues working(S1)

Coupling

Elastic

Bearing

Rolling bearing, 2PCS

3.Main Specification of Engine

Model

16V190ZDT-2

Rated power(kw)

1000

Rated speed(r/min)

1000

No. and layout of cylinders

16-cylinder, 60° Vee

Type

Four stroke, water cooled, turbocharged and after-cooled, pre-combustion chamber type spark plug, mix before compressor

Type of combustion

Lean burn

Gas pressure(bar)

1-4

Gas consumption(Nm³/kwh)

0.3

Specific oil consumption

(g/kwh)

1

Oil capacity (L)

200

Bore(mm)

190

Stroke(mm)

210

BMEP(bar)

9.26

Compression ratio

8:1

Total displacement(L)

71.5

High temperature water capacity (L)

250

Low temperature water capacity (L)

150

Emission

Meet IMO code

Exhaust temperature

(before turbine ℃)

≤650

Direction of rotation

Counter-clockwise

(facing to flywheel)

Intake air flow(m³/h)

2077

 Exhaust gas flow(m³/h)

2227

Lubrication method

Pressure and splash lubrication

Overhauling time(H)

30000





MAIN SPECIFICATIONS OF ALTERNATOR

Alternator modelExciting modelInsulation classConnectionCoolingStructure type
1FC6564-6LA42 (SIEMENS)BrushlessClass F3-phase, 4-wireAir cooledAVR and reactive droop regulator assembled in alternator

(Kindly Noted: data shown in above table tested under standard working condition: 25 Dec C, atmospheric pressure 100kPa, relative humidity 30%, altitude <1000m.)

CONTROL PANEL

Control panel is panel type, vertical structure, model is GPL1200. Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions.

The Generator possesses the following automatic monitoring and protective functions:

A) Audio or visual alarm for:
-   High oil and water temperature
-   Low oil pressure
-   Over current
-   Short circuit
-   Over-speed
-   Reverse power
B) Shut-off for:
-   Low oil pressure
-   Over-speed
-   Short circuit
-   Over-speed
-   Reverse power
C) Trip-off for:
-   Over-current
-   Short circuit
-   Reverse power
The generator can not only supply power directly to load but also can be paralleled running.


OPTIONAL DEVICE
Steel Soundproof Container (sound attenuated canopy)
CHP/ Cogeneration/CCHP Trigeneration
ATS and Synchronization Parallelling Panel
Oil and Water Heater

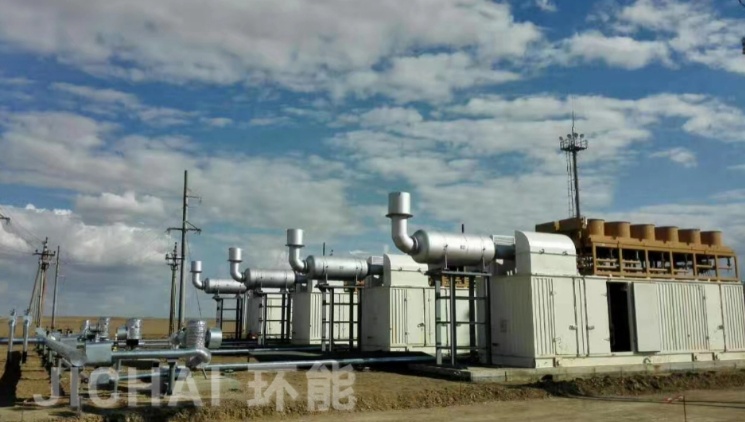

Project Case
