700kW Natural Gas Turbine Generator
700GF-Z Generator set is a proven unit which has been put into market and verified for many years, and has feature of high thermal efficiency, high load capacity and anti-load surge ability with universal parts and low maintenance cost.

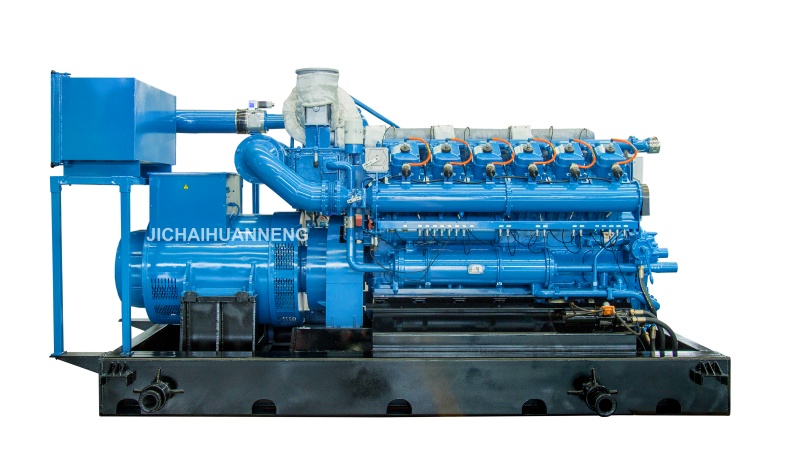

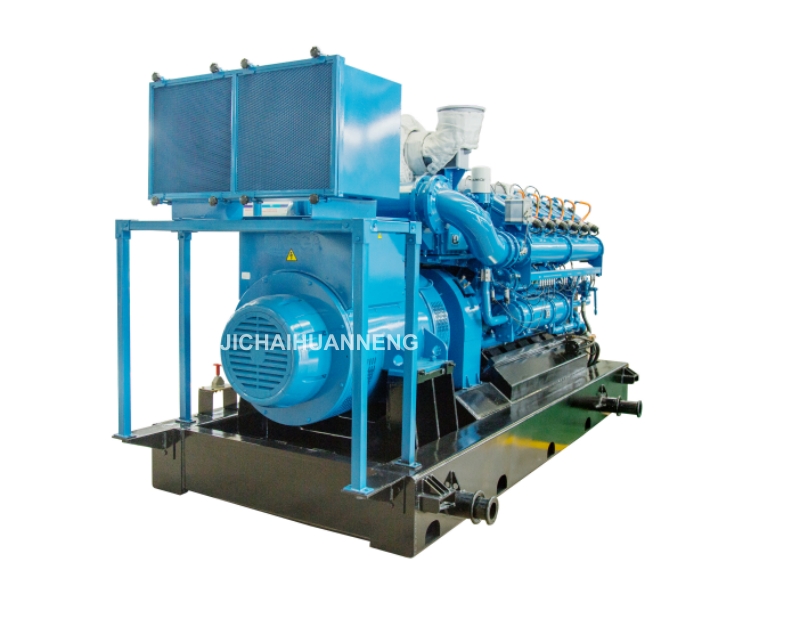

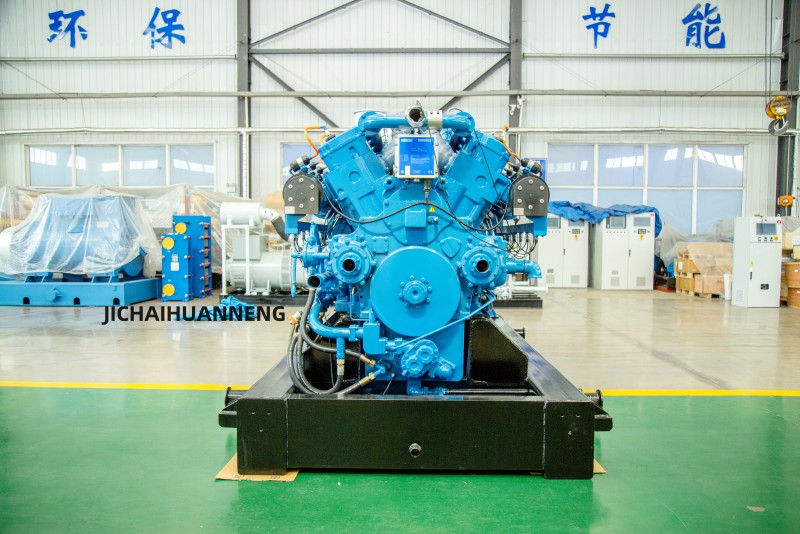

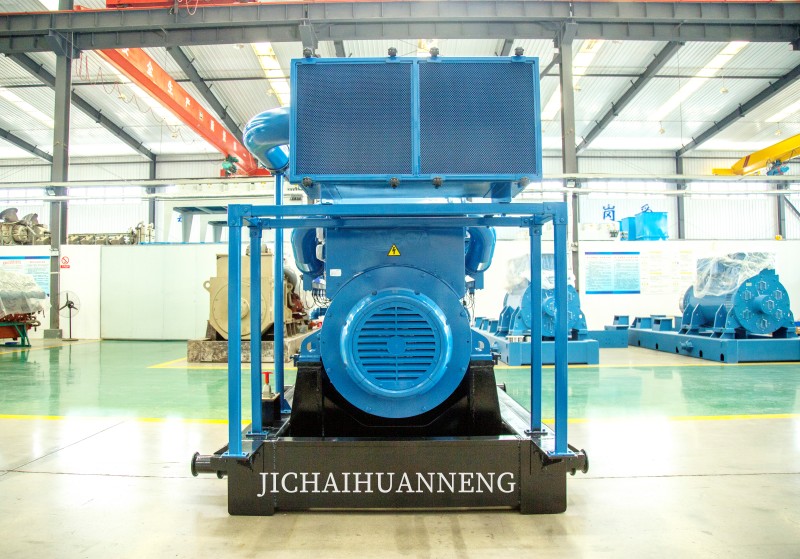

The 700GF-Z biogas engine-generator adopts Jichai 12V190 Engine and Domestic first-tier brands technology alternator. This generator set utilizes advanced control system, closed-loop electronic control technology, air-gas mixed technology before turbo-charge and lean burn technology, follows IS09001 Quality System.
700GF-Z Generator set is a proven unit which has been put into market and verified for many years, and has feature of high thermal efficiency, high load capacity and anti-load surge ability with universal parts and low maintenance cost.
700KW Biogas Gas Generator Specification
Type | 700GF-Z |
Rated Power,kW | 700 |
Rated Voltage,V | 440 |
Rated Current, A | 1148 |
Rated Frequency,Hz | 60 |
Rated Power Factor,cosφ | 0.8（lagging） |
Supply Connecting | 3 phases 3 wires/3 phases 4 wires |
Rated Speed,r/min | 1000/1200 |
Eng. Oil consumption,g/kw h | ≤0.3
|
Efficiency,% | 38 |
Starting Method | DC24V Electric |
Noise,dB（A） | ≤120 |
Ref. Overall Dim.(LBH),mm | Open type：6000×2200×2400 Container type 8230X3000X2900 |
Ref. Weight,kg | 14500 |
Engine Technology Specification
Type | 12V190ZL |
Number of cylinders | 12 |
Cylinder Arrangement | Vee, 60° |
Cylinder diameter x stroke, mm×mm | 190×210 |
Total Displacement, L | 71.5 |
Intake Type | Turbocharged and inter cooler |
Rated Power, kW | 750 |
Rated Speed, r/min | 1000/1200 |
Exhaust Temperature before turbocharger, ℃ | ≤650 |
