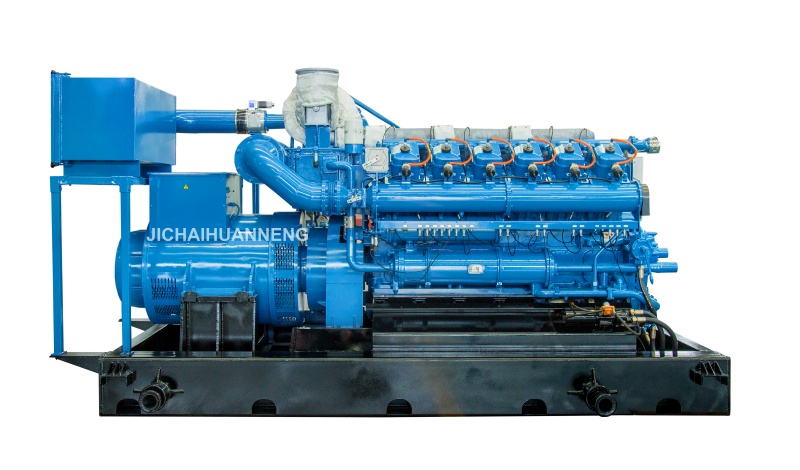

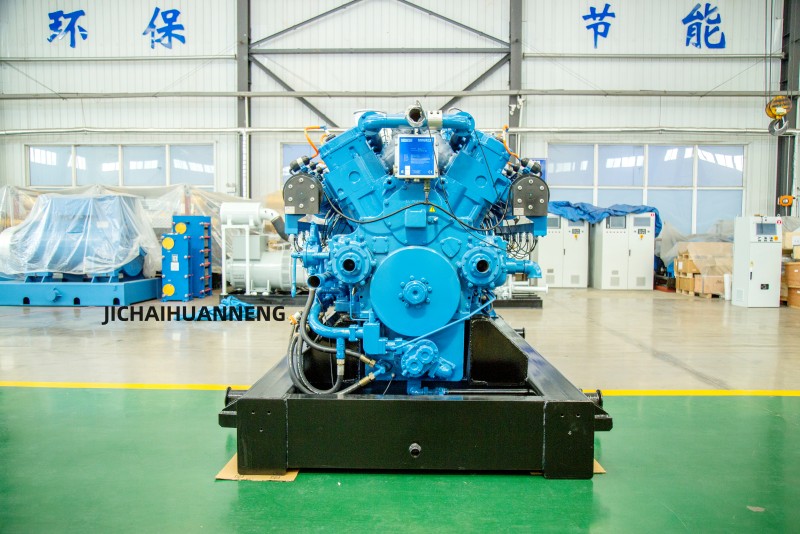

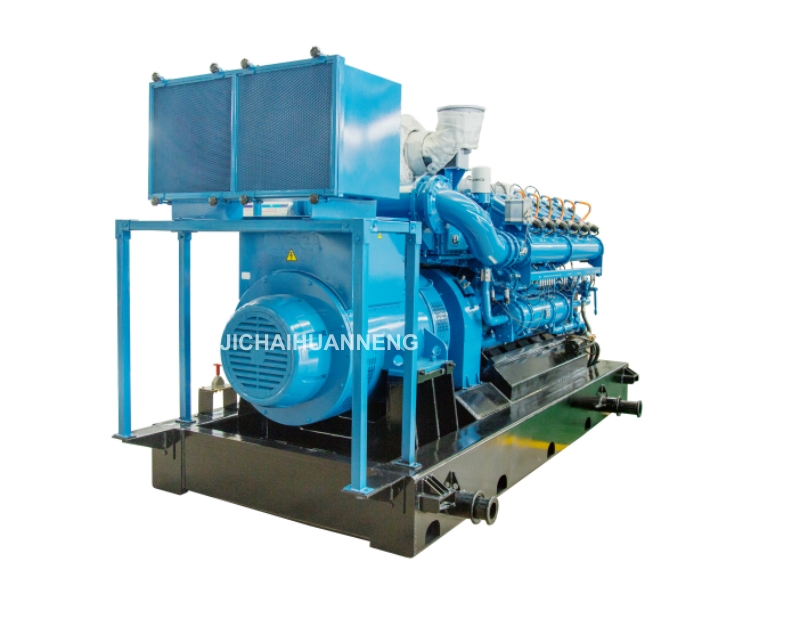

800kW Container Type Biogas Enging Generator
The genset has better gas applicability and good performance, which effectively reduce emission indicators. Especially, the application of advanced control system makes the genset easy to start, reliable in control and easy to maintain.
Based on the successful experience of the 12V190 series gensets, the 800kW Natural Gas Generator Set is a new generation of high-power gas generator set with advanced air fuel ratio automatic control technology. The genset has better gas applicability and good performance, which effectively reduce emission indicators. Especially, the application of advanced control system makes the genset easy to start, reliable in control and easy to maintain.
Technical Specification of Generator Set
Model of Genset | 800GF-Z |
Rated Power | 800kW |
Rated Capacity | 1000kVA |
Rated Voltage | 10500V |
Rated Speed (rpm) | 1000 |
Rated frequency(Hz) | 50 |
Rated power factor | 0.8 lagging |
Heat Consumption(kJ/kW·h) | ≤9500 |
Speed Control | Electronic Governor |
Cooling Method | Forced Water Cooling |
Starting method | Electrical Starter (DC 24V) |
Speed modulate method | Electronic Control |
Net weight(kg) | 14500 |
Overall dimension L×B×H(mm) | 6000×2200×2400 |
Model of Engine | 12V190ZL |
Type | Four stroke, spark plug ignition, water cooling, turbocharging |
Number and layout of cylinders | 12 Cylinders, 60° V type |
Bore (mm) | 190 |
Stroke (mm) | 210 |
Total displacement(L) | 71.4 |
Rated Speed(r/min) | 1000 |
Compression ratio | 12:1 |
Exhaust Temperature before Turbo (℃) | ≤630 |
Outlet water temperature(℃) | ≤85 |
Inlet temperature of intercooler(℃) | ≤45 |
Oil temperature (inside the oil pan)(℃) | ≤90 |
Speed Regulation | 0-5% adjustable |
Lube Oil Model | Kunlun KCN7810 or equivalent gas engine oil |
Cooling Method | Forced water cooling |
Lubricating method | Pressure and splash lubrication |
Starting Method | Electrical motor starting |
Direction of rotation | Counter-Clockwise |
Technical Specification of Alternator
Model | 1FC Series or equivalent |
Rated Power | 800 kW |
Rated Frequency | 50 Hz |
Power Factor | 0.8（Lag） |
Rated Speed | 1000 r/min |
Connection Method | 3 phase 4 wire |
Excitation Method | Brushless excitation |
Insulation Level | F |
Protection | IP23 |
Cooling Method | Fan cooling（IC01） |
Working System | Continuous working （S1） |
Bearing Structure | Double bearing |
Certification
Delivery
