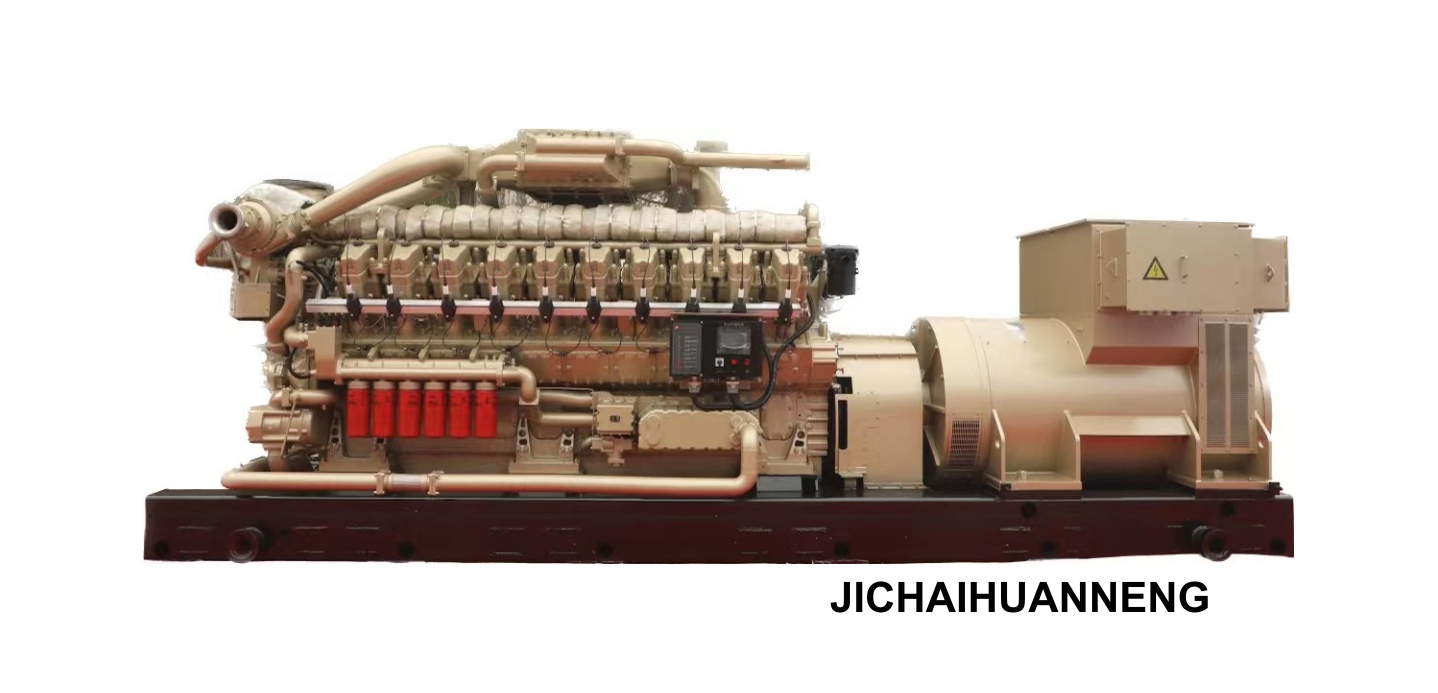

1500kW Coal Mine Gas Engine Generator
Low pressure gas, high intelligence, low heat consumption, high reliability, low emissions, long life, high power and high performance.Through the reasonable matching of the intake system and the adoption of the world's most advanced control mode, the engine can adapt to the methane concentration widely, and its power, economy, safety and reliability have reached the international advanced level
Genset model | 1500GF-W |
Alternator model | 1FC series,siemens technology.Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1500 |
Rated power | 1500kW |
Rated voltage | 400V/480V/6300V/10500V/13800 |
Rated frequency | 50/60HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Transient state voltage regulation | +20%（-15） |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Transient state frequency regulation | ≤±10% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 7500mm*2300mm*2800mm |
Net weight | 29000kg |
Engine model | L20V190ZLWd-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 20 |
Bore | 190mm |
Stoke | 255mm |
Total displacement | 144.6L |
Rated speed | 1000r/min |
Rated power | 1700KW |
Idle speed | 700r/min |
Gas pressure | 7-9KPa |
Gas consumption | ≤8600kJ/kW·h |
Oil consumption | ≤0.6g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5 |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Technology Service
1. Professional engineers provide pre-sales technical consultation for users
2. Cooperate with users to install and debug the unit
3. Maintenance engineers are available to provide technical assistance at any time
Delivery
We typically undertake delivery through bulk cargo, container, packing Standard export packing, or custom-made packing as your request. We will organize the most competitively priced transportation mode in accordance to the volume of products. All merchandise have long past via strict inspection and are in excellent circumstance earlier than shipment. We attempt for a hundred percent consumer pride on each and every sale we close.
