2000kW Diesel Generating Set

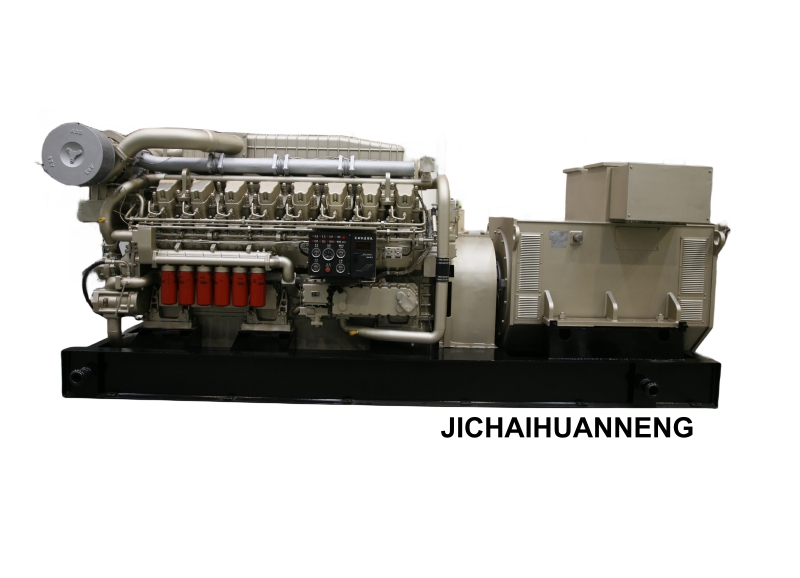

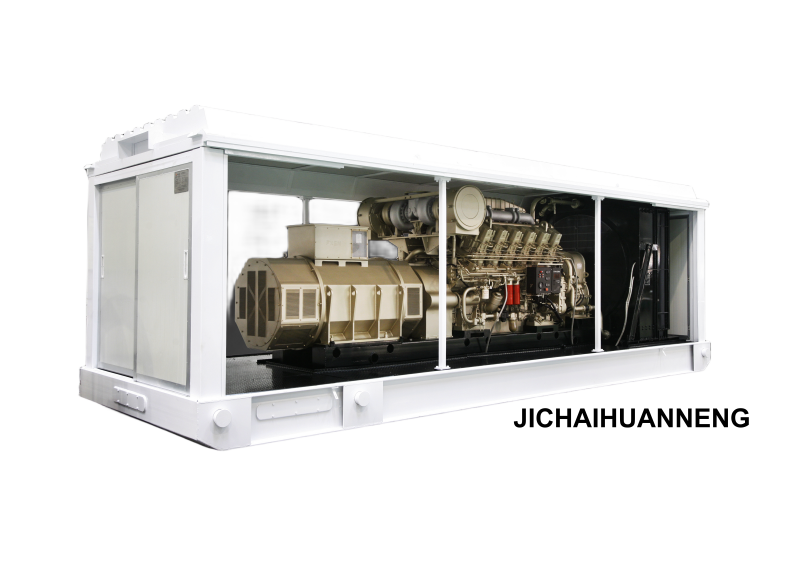

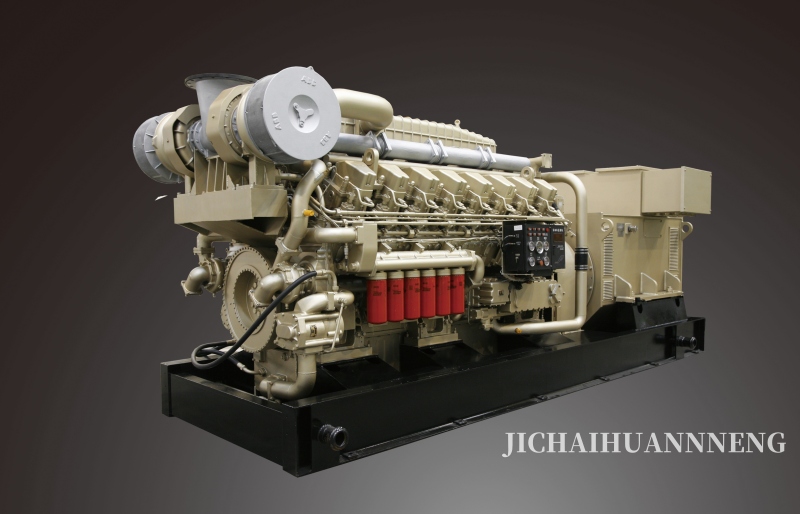

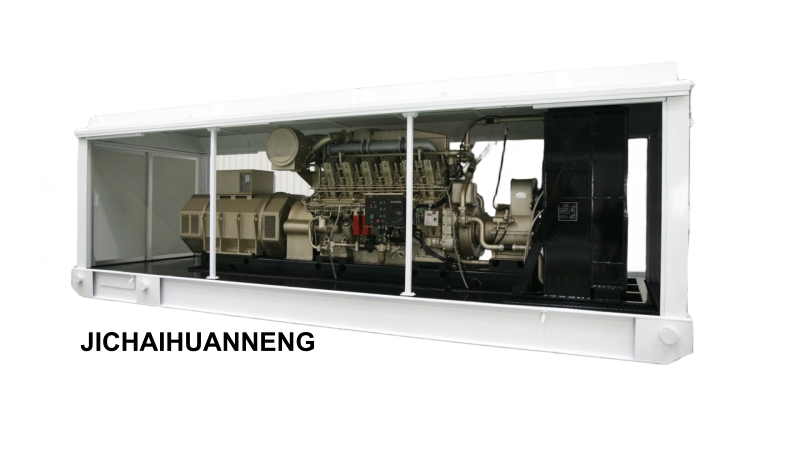

2000kW diesel generating sets(2000GF) are powered by model H16V190ZL diesel engine produced by our company. Complying with National Standard “GB2820 General Specification for Industrial Frequency Diesel Generating Sets” (eqv ISO 8528-1:1993) and with reference to “IEC34-I” rotary generator standard, the sets are equipped with high quality alternator of both home & abroad and self-made control panel according to customers requirement.
2000kW diesel generating sets(2000GF) are powered by model H16V190ZL diesel engine produced by our company. Complying with National Standard “GB2820 General Specification for Industrial Frequency Diesel Generating Sets” (eqv ISO 8528-1:1993) and with reference to “IEC34-I” rotary generator standard, the sets are equipped with high quality alternator of both home & abroad and self-made control panel according to customers requirement.
The H16V190ZL diesel engine is a kind of high pressure charging & high power diesel engine co-developed by JDEC and AVL, Austria as well as domestic famous university and research institute. Advanced technology and well-developed parts & components have been adopted and targets of BEMP, fuel consumption and emission, operation reliability and safety have been improved very much.
Main Specification of Genset
Model of genset | 2000GF |
Model of engine | H16V190ZL |
Coupling method | |
Rated speed (r/min) | 1500 |
Rated power (kW/kVA) | 2000/2500 |
Rated voltage (V) | 400 |
Rated frequency (Hz) | 50 |
Rated power factor | 0.8 lagging |
Supply connecting | 3-phase, 4-wire |
Governor | Electric governor |
Control model | Remote electric control, Hand control |
Starting method | 24V DC electric starting motor |
Cooling method | Water cooling system |
Overall dimension L×B×H(mm） | 7150×2180×2421 |
Net weight (kg) | 21000 |
Main Electrical Performance Data
Voltage | Frequency | ||||||
Stable regulating rate | Instantaneous regulating rate | Recovery time | Fluctuation | Stable regulating rate | Instantaneous regulating rate | Recovery time | Fluctuation |
±2.5％ | ＋20％－15％ | 1.5s | 0.5% | 5% | ±10% | 7s | 0.5% |
Voltage adjustment range: idle load voltage adjusted 95~105% rated voltage. | |||||||
Control Panel
Control panels for diesel generating sets are used to control the electric energy transporting of generating set. They have the functions of under-voltage, over-current, auto speed governing and reverse power protections etc. Meanwhile, they can monitor the speed, water temperature, oil temperature, oil pressure and exhaust temperature of the engine. And also they are fitted with sound and light alarm devices.
Main Specification of Engine
Model of engine | H16V190ZL |
Rated Power (kW) | 2200 |
Rated Speed (r/min) | 1500 |
No. and layout of cylinders | 16-cylinder，60°Vee |
Type | Four stroke, water cooled, turbocharged and after-cooled, direct injection |
Specific heat consumption（g/kW.h） | ≤200 |
Specific oil consumption (g/kW.h) | ≤1.0 |
Bore | 190mm |
Stroke | 215mm |
Compression ratio | 14.5:1 |
Total displacement（L） | 97.53 |
Direction if rotation | Counter-clockwise(facing to flywheel) |
Lubrication method | Pressure and splash lubrication |
Note: Rated power is the effective power of engine at rated speed under standard environment conditions, according to the standard of GB/T 6072 (idt ISO 3046). The standard environment conditions are: atmospheric pressure: 100kPa, relative humidity: 30%, ambient temperature: 25 degrees Celsius, Otherwise, the engine power shall be corrected through conversion.
