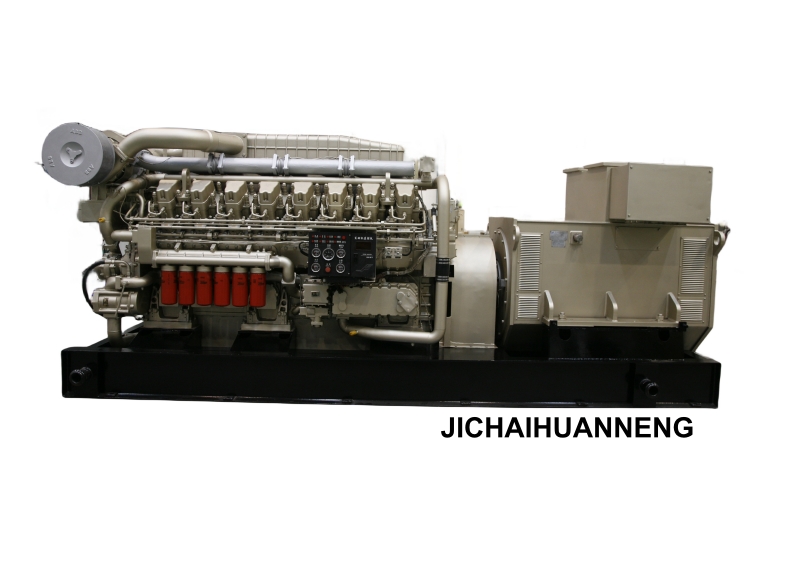

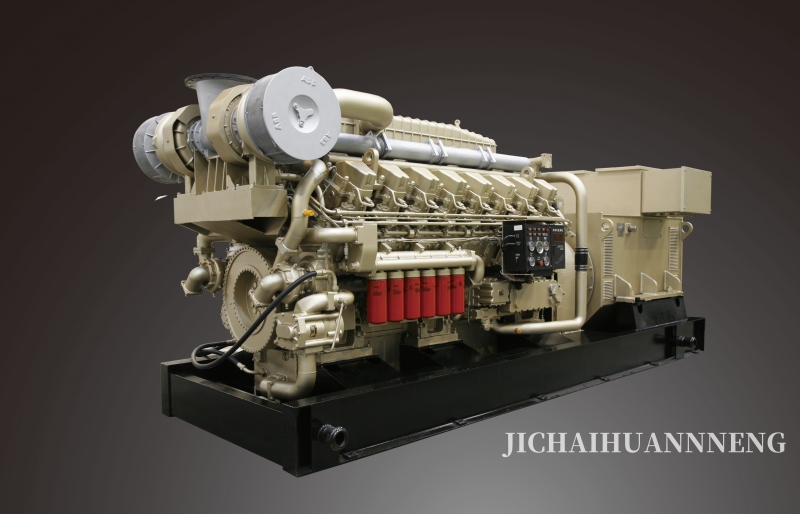

1000kW Diesel Generating Set
1.High quality
2.Long usage life
3.Easy operation
4.Low maintenance cost
Jichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stability and low fluctuation. The generator is desirable for industrial power solution.
1000KW DIESEL ENGINE GENERATOR
GENERATOR SPECIFICATION | |
Genset model | 1000GF-D |
Output power | 1000KW/1250KVA |
Output voltage | 400/230V |
Output currency | 1800A |
Rated frequency | 50Hz |
Rated speed | 1500rpm |
Dimension | 12000X2400X2700mm |
Weight | 14000kg |
ENGINE SPECIFICATIONS
ENGINE SPECIFICATION | |
Brand / Origin | CUMMINS |
Engine model | KTA38-G9 |
Rated power | 1090kw |
Number of cylinders | 12.V |
Bore x stroke | 159X159mm |
Start method | electric start |
Cooling method | Closed water circulation cooling |
Governor method | Electrical |
Intake mothod | Turbocharged |
Overload capacity | 110% |
Speed | 1500rpm |
Rated fuel consumption | 207 L/h |
Oil capacity | 135 L |
Displacement | 37.8 L |
ALTERNATOR SPECIFICATION
ALTERNATOR SPECIFICATION | |
Brand / Origin | STAMFORD |
Alternator model | LVI634G |
Rated power | 1250KVA |
Rated voltage | 400V |
Insulation class | H |
Protection level | IP23 |
Wiring | 3P4W Y-connection |
Adjustment method | AVR |
Output frequency | 50Hz |
Certification

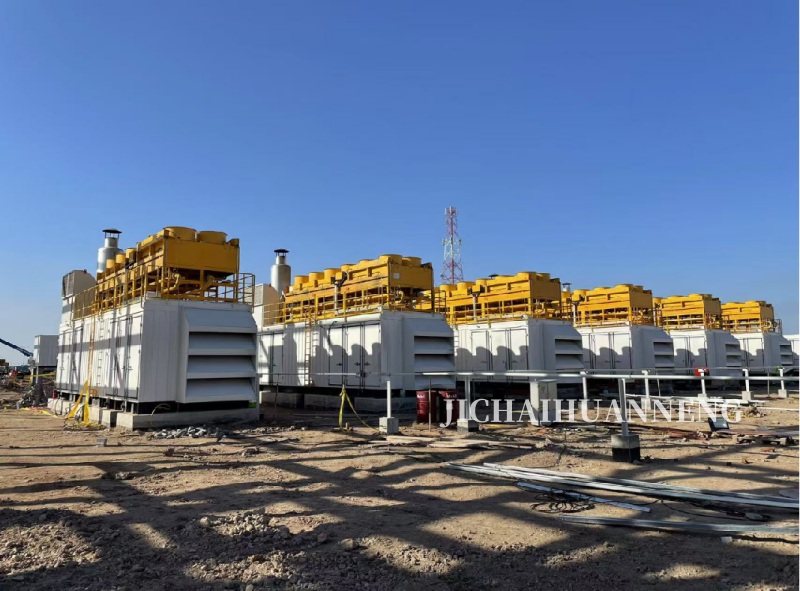

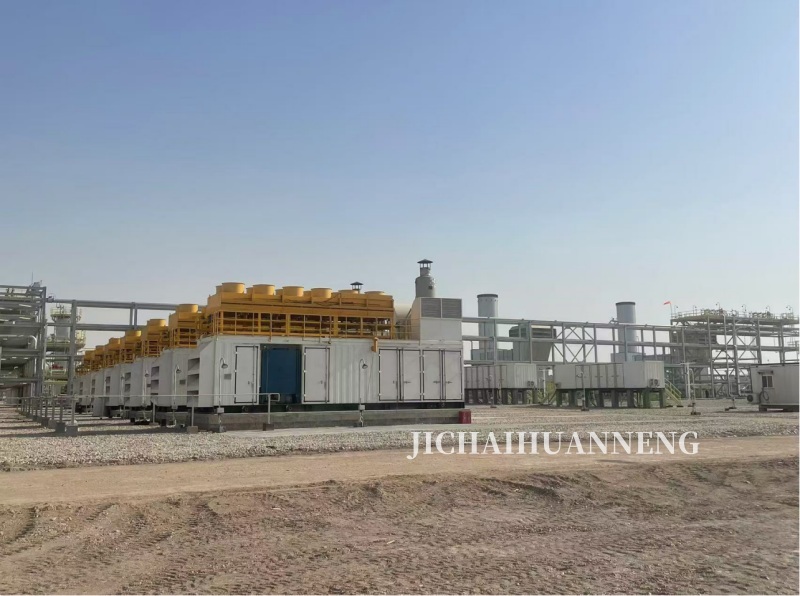

PROJECT CASES
