Specification Description
This diesel generator set is an emergency power source for particularly important loads and should meet the following operating conditions: under normal circumstances, the diesel generator set should always be in a ready to start state and have the ability to carry 100% load within 15 seconds. There should be interlocking devices between the unit and the power system to prevent parallel operation; The interval between fault free operation of the unit shall not be less than 1000 hours.
Technical Parameter

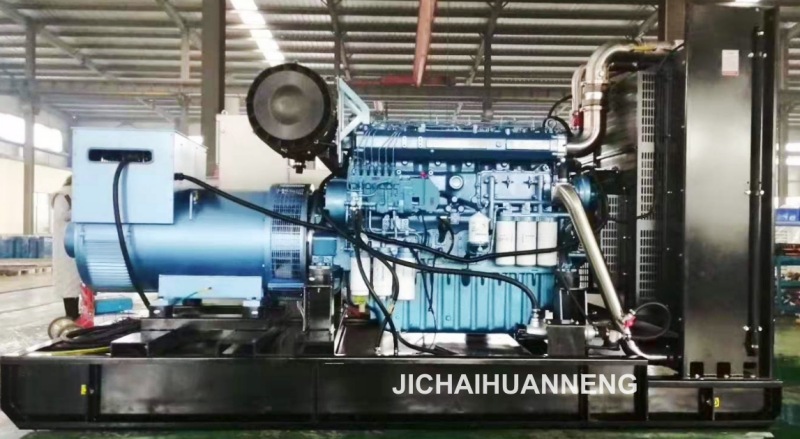

Technical Parameter Of 500KW Diesel Generator Set | |||
Generator Model：JCHN-500GF | Steady state voltage adjustment rate（%）：≤±1 | ||
Rated power：500KW | Voltage fluctuation rate（%）：≤±0.49 | ||
Rated power factor：COSΦ=0.8（lagging） | Transient voltage adjustment rate（%）：＋19～－15 | ||
Rated output voltage：480V | Voltage stability time（s）：≤1 | ||
Rated current：710A | Steady state frequency regulation（%）：≤±1 | ||
Rated frequency：60Hz | Frequency fluctuation rate（%）：≤±0.5 | ||
Rated speed：1800rpm | Transient frequency adjustment rate（%）：＋9.5～－7 | ||
Start control method: Electric | Frequency stability time（S）：≤2 | ||
Size：3600×1500×1850（L×W×Hmm） | Weight：4800 kg | ||
Configuration Plan for 500KW Diesel Generator Set | |||
Model | 6M33D670E201 | ||
Rated power | 670KW | ||
Cylinders | 6 | ||
Bore * stroke（mm) | 150*185 | ||
Type | Inline, water-cooled, four stroke | ||
Air Intake method | Turbocharged intercooling | ||
Combustion method | Direct injection combustion chamber | ||
Total piston displacement (L) | 19.6L | ||
Fuel consumption rate (g/kg/h) | ≤192g/kw.h | ||
Cooling method | Forced water cooling | ||
Start method | Electric | ||
Enigne | Rated power | 500KW | |
Rated current | 710A | ||
Rated voltage | 480V | ||
Frequency | 60HZ | ||
Speed | 1800r/min | ||
Power factor | 0.8 | ||
Phase number | Three-phase four-wire | ||
Protection Grade | IP22 | ||
Certification
