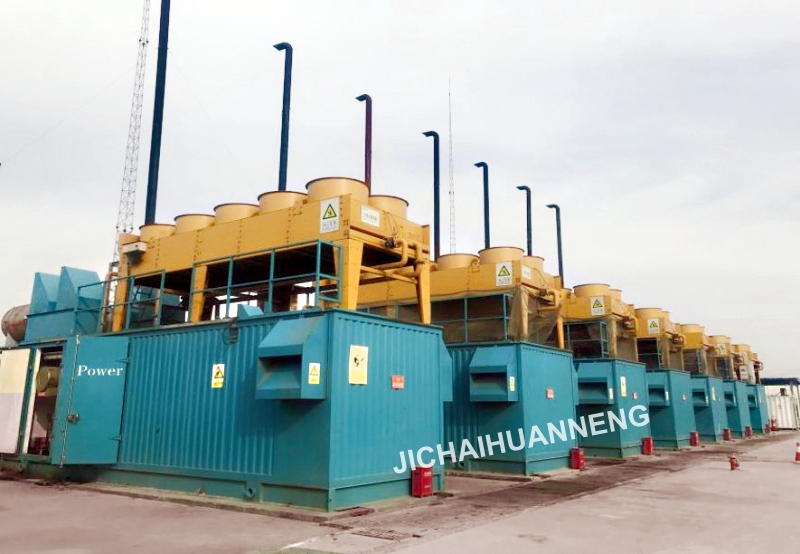

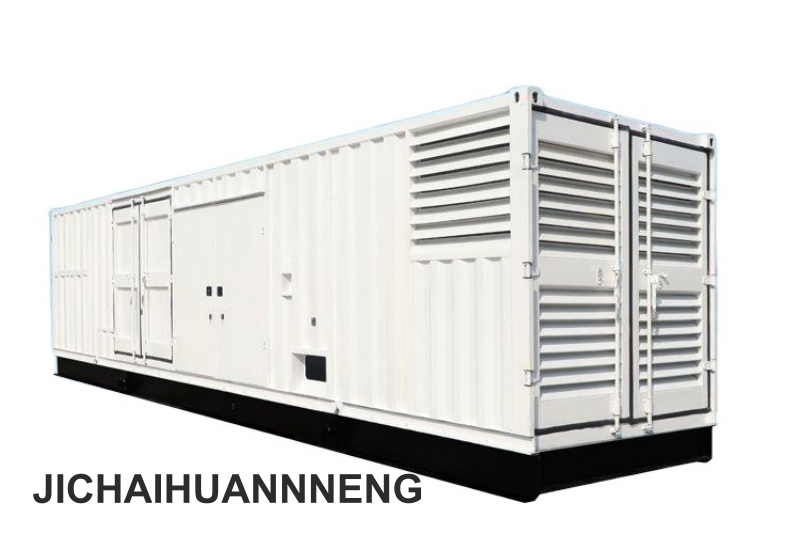

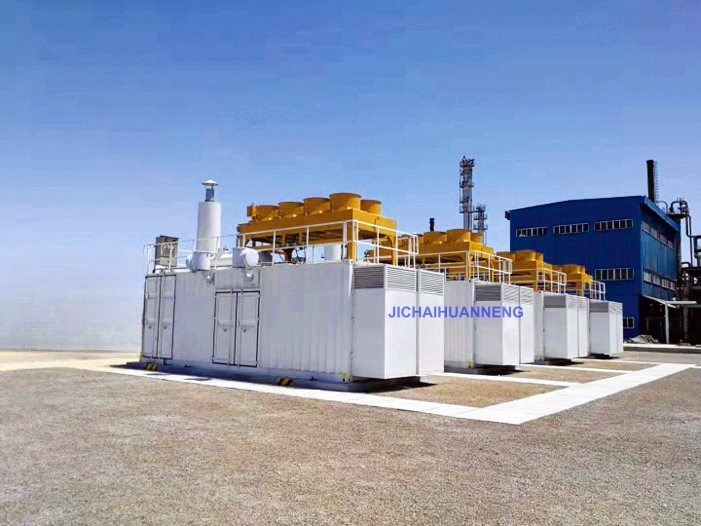

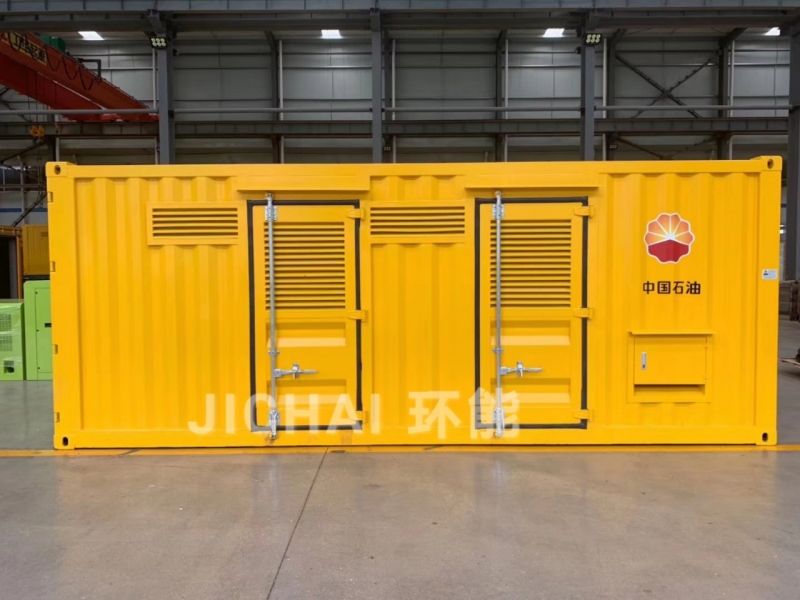

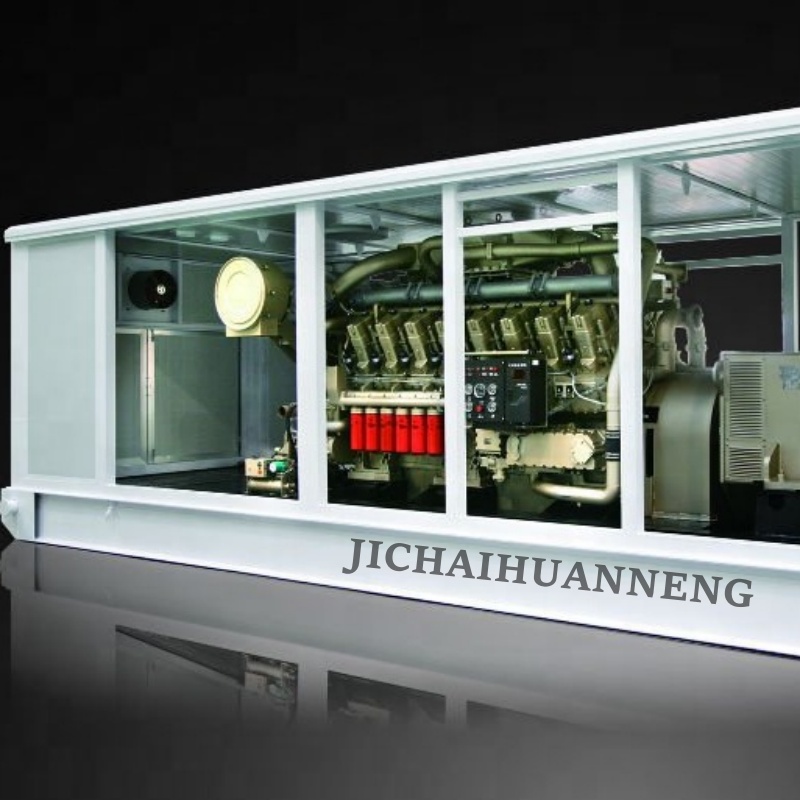

1000kW Container Type Natural Gas Engine Generator

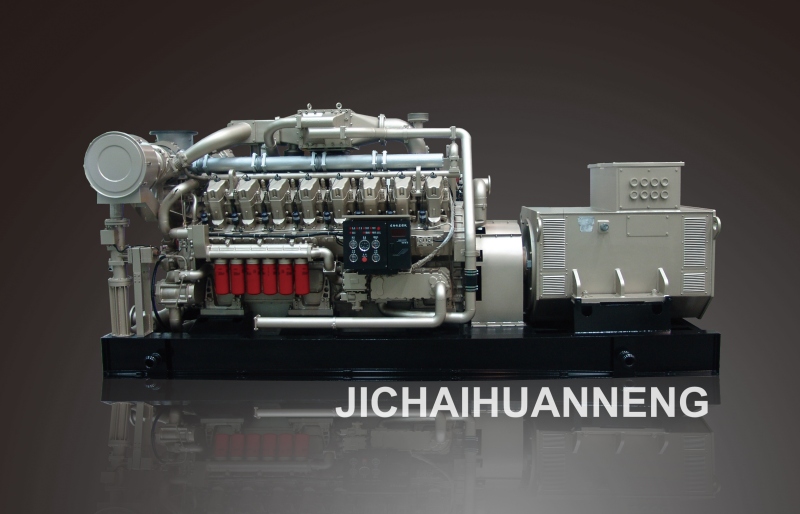

The natural gas generator set adopts - H16V190ZLT 2 engine, which is one sort of highly intelligent, low heat consumption, high reliability, low emission, long lifetime 16V gas engine. H16V190ZLT-2 electrical control and external mix engine owns speed 1000r/min, single unit power 1320kW.
The natural gas generator set adopts - H16V190ZLT 2 engine, which is one sort of highly intelligent, low heat consumption, high reliability, low emission, long lifetime 16V gas engine. H16V190ZLT-2 electrical control and external mix engine owns speed 1000r/min, single unit power 1320kW.
With large power reverse, the engine can be used to assemble 1000kW natural gas generator set and equipped machinery. It owns 38% generation efficiency, low maintenance cost and yearly 8000 running hours.
Technical Specification of Generator Set
Generator Set Model | 6116GD |
Rated Power | 1000 kW |
Rated Current | 1250 kVA |
Rated Voltage | 400 V |
Rated Speed | 1000 rpm |
Rated Frequency | 50 Hz |
Oil Consumption | ≤0.3 g/kW·h |
Heat Consumption | ≤9500 kJ/kW·h |
Rated Power Factor | 0.8 (Lag) |
Alternator Model | Siemens JFG series |
Starting Method | Electrical starting |
Operation Mode | Remote electrical control |
Voltage Adjustment Method | Automatic |
Governor Mode | Electric governor |
Cooling Method of Genset | Forced water cooling |
Name | H16V190ZLT-2 |
Type | Four stroke, water cool, turbocharger inter-cooler, air-fuel ratio control,spark plug ignition, electrical control, external mix. |
Cylinder Arrangement | V type, 60°angle |
Number of Cylinder | 16 |
Cylinder Diameter | 190 mm |
Piston Stroke | 215 mm |
Total Displacement | 97.53 L |
Rated Speed | 1000 r/min |
Idle Speed | 700 r/min |
Rated Power | 1320 kW |
Piston Average Speed | 7.17 m/s |
Natural Gas Pressure | 7～9 kPa |
Exhaust Temperature before Turbo | ≤680 ℃ |
Output Water Temperature | ≤90 ℃ |
Intercooler Input Water temp | ≤45 ℃ |
Lube Oil Temperature | ≤90 ℃ |
Stable Regulating Speed Rate | 0～5% Adjustable |
Lube Oil Model | Mobil Pegasus 705 |
Cooling System | Forced water cooling |
Lubrication Method | Pressure lubrication and splash lubrication |
Starting Method | Electrical motor starting |
Crane-shaft Direction | Anti-clockwise (see from flywheel side) |
Model | Siemens series |
Rated Power | 1000 kW |
Rated Voltage | 400 V |
Rated Current | 2165 A |
Rated Frequency | 50 Hz |
Power Factor | 0.8（Lag） |
Rated Speed | 1000 r/min |
Efficiency | 93.9％ |
Connection Method | Three phases and three lines（Y ） |
Excitation Method | Brushless excitation |
Insulation Level | F |
Protection | IP23 |
Cooling Method | Fan cooling（IC01） |
Working System | Continuous working （S1） |
Bearing Structure | Double bearing |
Total Weight | 8700 kg |
88 kgm2 | |
Environment Temperature | ≤40 ℃ |
Altitude | ≤1000 m |
Direction of Rotation | Clockwise (see from alternator side) |
Alternator Leading Line Direction | Left side (See from alternator shaft side) |
