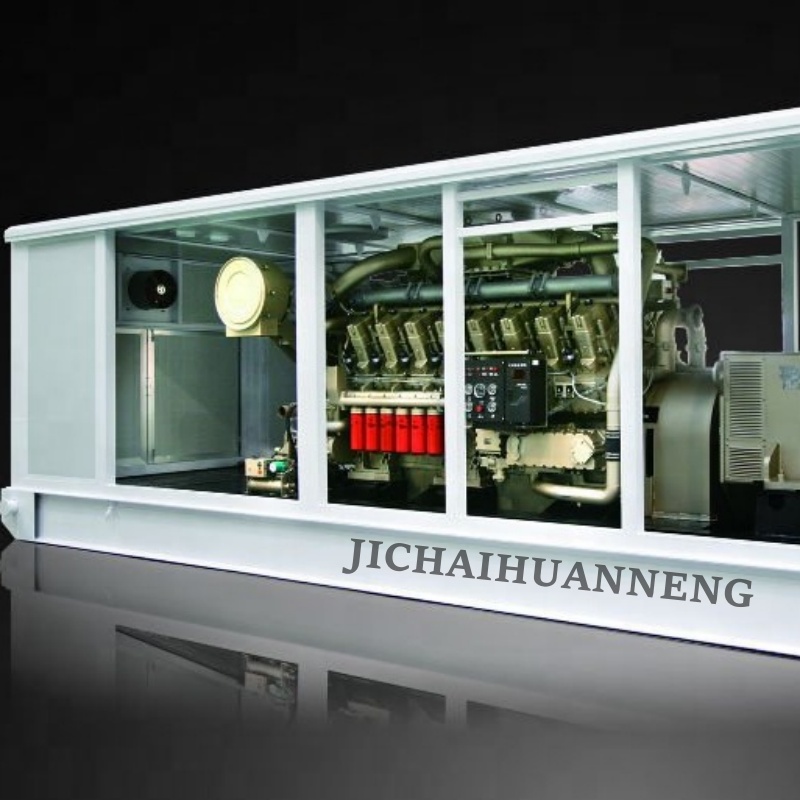

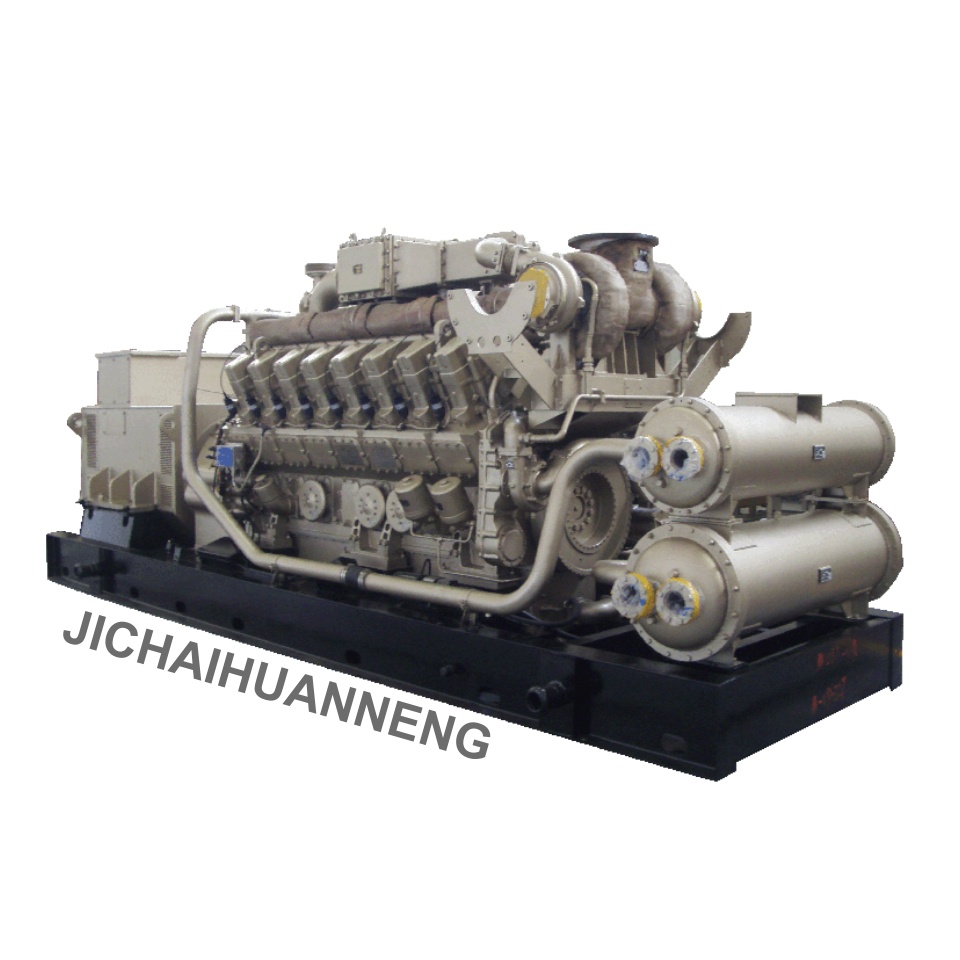

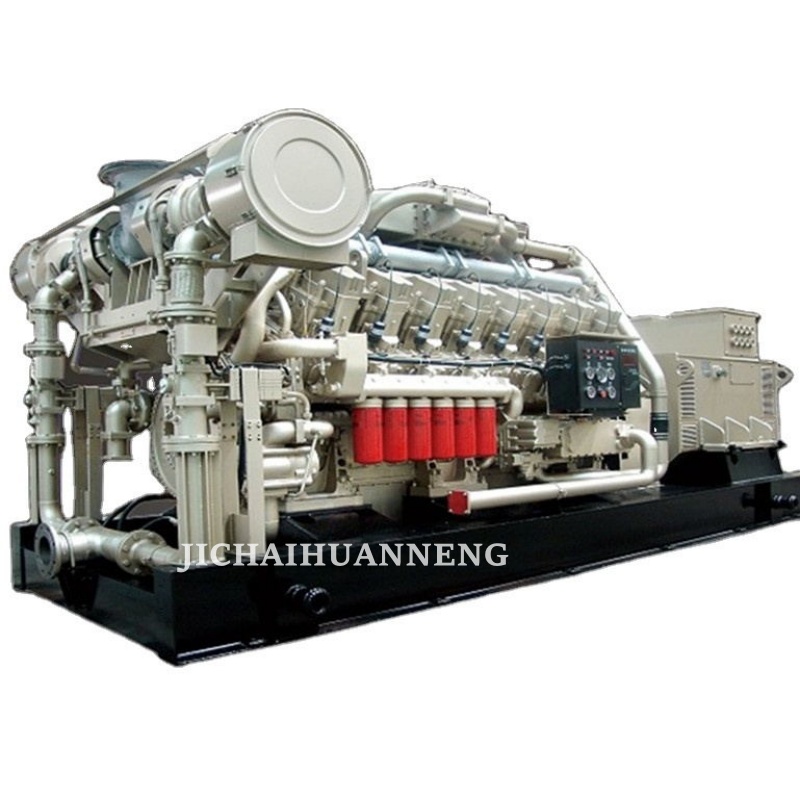

1200kW Container Type Natural Gas Engine Generator
1、High Efficiency
2、Low Consumption
3、Clean Emission
4、Long Service

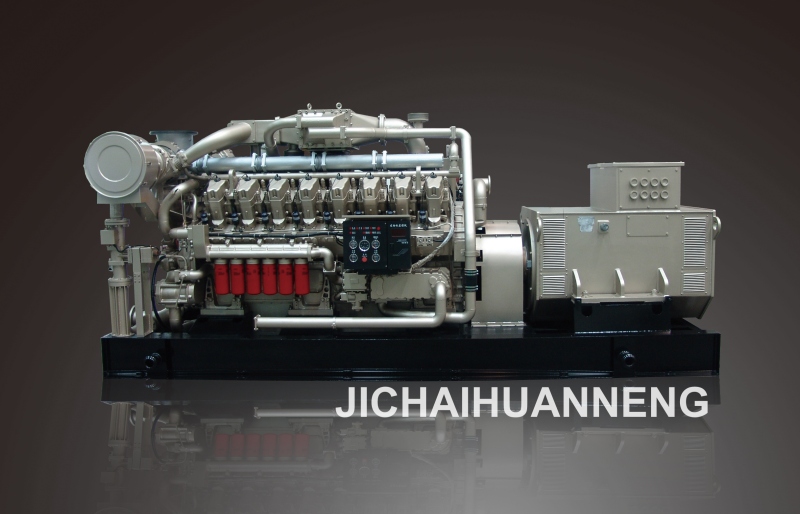

The natural gas generator set adopts - H16V190ZLT 2 engine, which is one sort of highly intelligent, low heat consumption, high reliability, low emission, long lifetime 16V gas engine. H16V190ZLT-2 electrical control and external mix engine owns speed 1000r/min, single unit power 1320kW.
Main specification of gas generator
Genset model | 1200GF-T |
Alternator model | Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1200 |
Rated power | 1200KW |
Electrical efficiency | ≥38% |
Rated voltage | 400V/480V/6300V/10500V/13800 |
Rated frequency | 50/60HZ |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Protection class | IP23 |
Isolation class | H |
Stabilized voltage regulation | ±2.5% |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 6000mm*2300mm*2800mm |
Net weight | 17000kg(without horizontal radiator） |
Main Specification Of Gas Engine
Engine model | G12V200ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 12 |
Bore | 200mm |
Stoke | 255mm |
Total displacement | 96.1L |
Rated speed | 1000/1200r/min |
Rated power | 1320KW |
Idle speed | 700r/min |
Gas pressure | 100-400KPa |
Gas consumption | ≤8550kJ/kW·h |
Oil consumption | ≤0.3g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Overhaul period | 60000h |
Certification

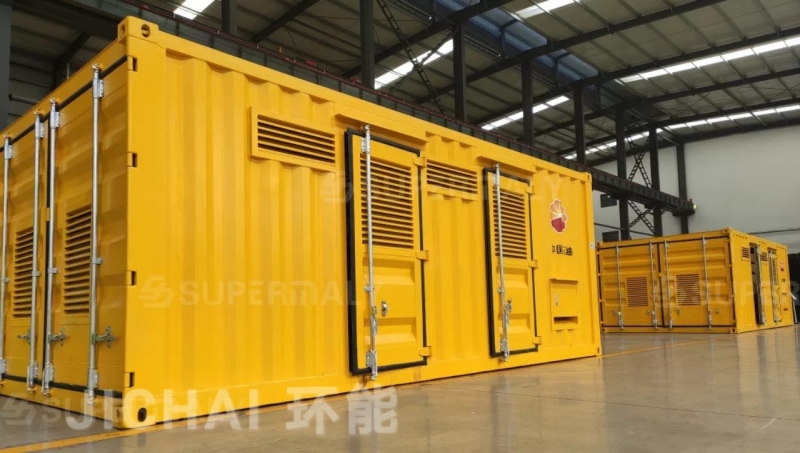

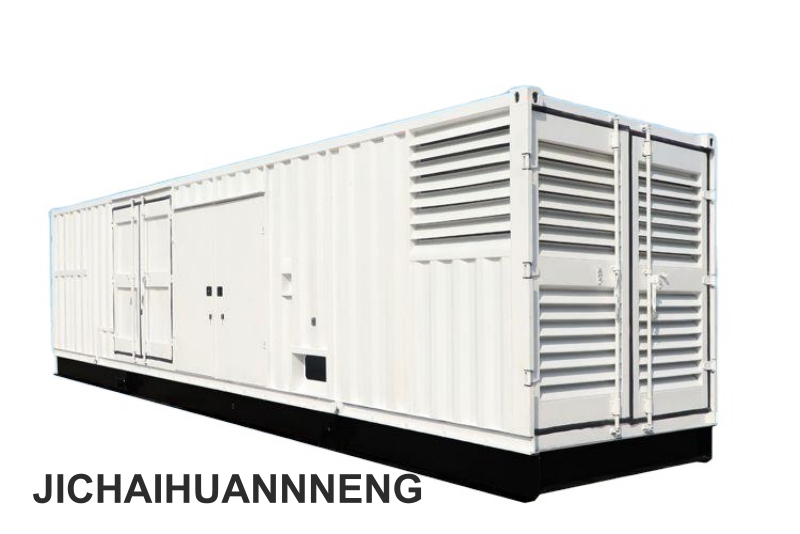

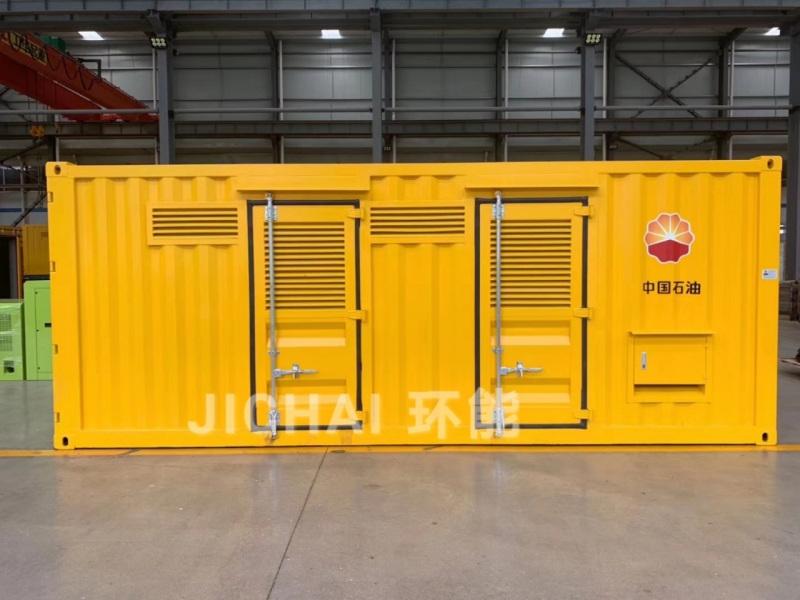

Container

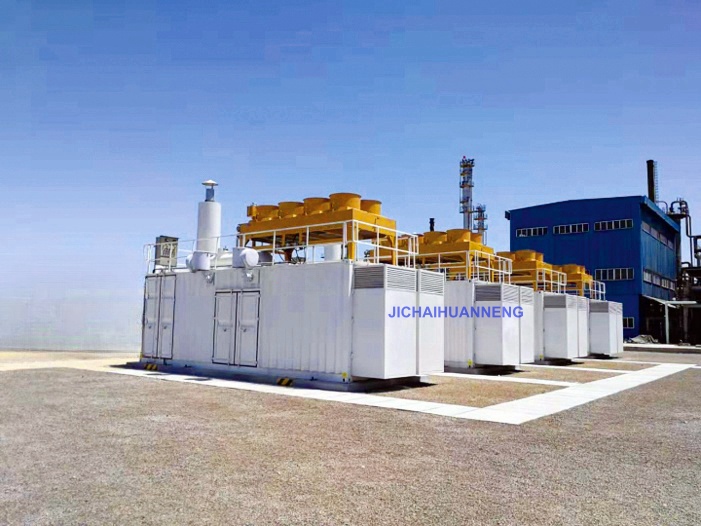

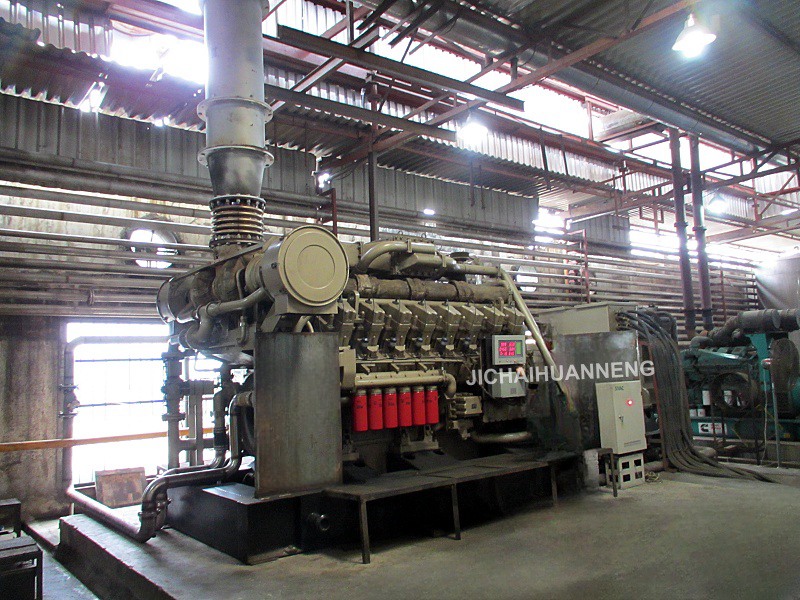

Project Cases
