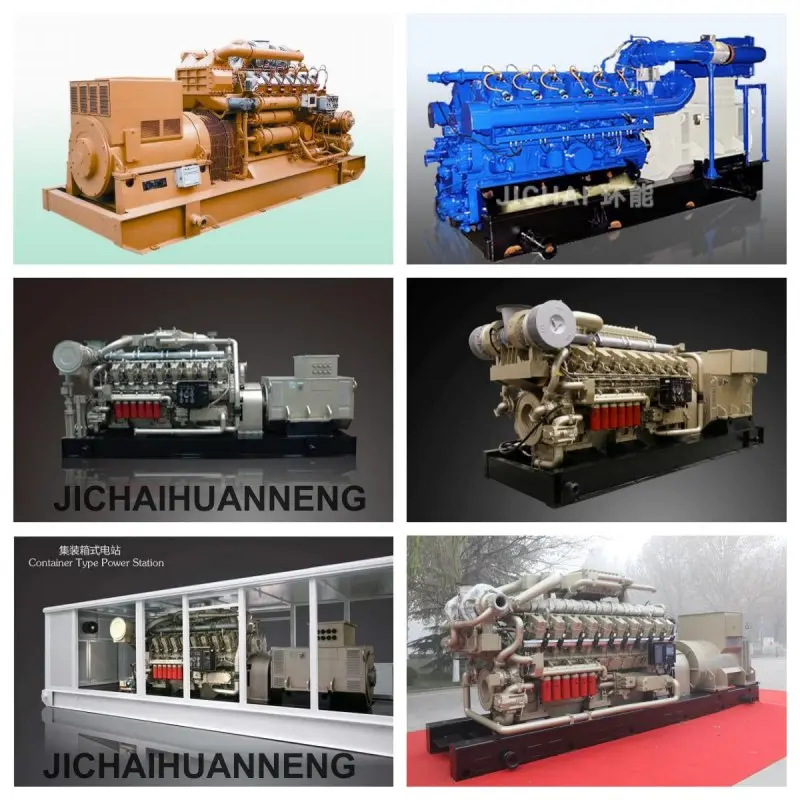

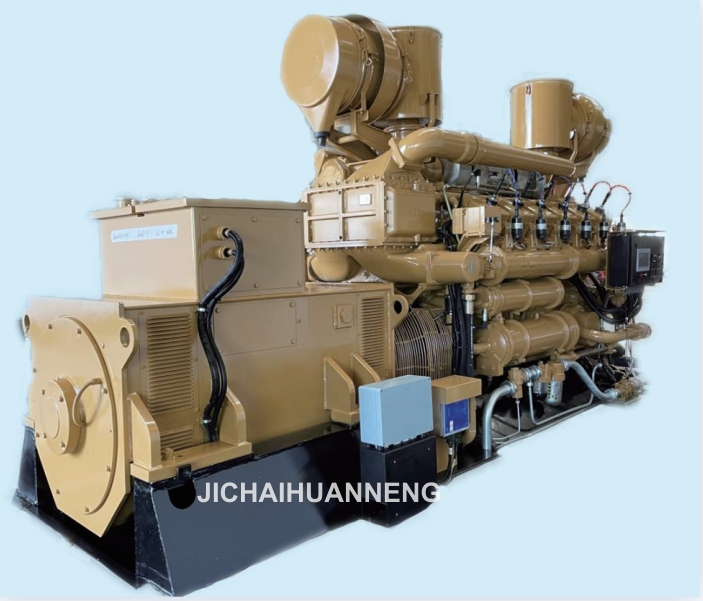

600kW Natural Gas Engine Generator
The 600KW herbal gasoline engine generator adopts worldwide superior manipulate device and technology. The dynamic property, low cost effectivity and reliability are occupying superior level.
JCHN is a multinational expert in the design,manufacture, engineering, installation,maintenance and operation of interior combustion engine primarily based diesel & all sorts of flamable gasoline strength plants. Applications consist of blended warmness and strength (CHP) with herbal gas, biogas, landfill gasoline and coal fuel or excessive effectivity diesel-fuelled energy generation.
The 600KW natural gas engine generator adopts international gold standard manipulate system and technology. The dynamic property, low value effectivity and reliability are occupying ideal level.The natural gas generator adopts worldwide superior manage machine and technology. The dynamic property, low in cost effectivity and reliability are occupying superior level.
The Natural Gas Generator adopts worldwide superior manage machine and technology. The dynamic property, low in cost effectivity and reliability are occupying superior level.
Main Specification of 600kw Natural Gas Generator Sets
Model Type | 600GF-T | Gas Engine Model | 12V190ZDT1-2 | |
Rated power | 600kW/750KVA | Alternator | Siemens Series | |
Rated voltage | 400 V | Starting method | 24V DC electric start | |
Rated speed | 1000rpm | Coupling method | ||
Rated frequency | 50Hz | Voltage regulation | Automatic | |
Rated current | 1082A | Cooling Mode | Close type water cool | |
Power factor | 0.8 Lagging | Heat Consumption | £ 10500kJ/kWh | |
Control mode | Electric control | Dimension (mm) | 6190x2200x2778mm | |
Net Weight (kg) | 13000 |
Specification of main system
Specification of most important system
Engine type:
Four stroke, water cooled, turbocharger and inter-cooler, A/F controller, Spark Ignition, digital control, outer mixing, Combine /Mix earlier than Turbocharger, etc.
Air-gas combine system:
This machine makes air-gas blended as per required ratio by means of mixer and enter into cylinder. The pump-film vacuum kind mixer ought to hold air-gas ratio secure at some point of generator set running beneath modified operation condition.
Cooling system:
Equipping vertical fan water tank. Fan is pushed via coupler. Vertical fan water tank is assembled on a frequent chassis.
Lubrication oil system:
The lubricating technique is strain and splash lubrication. This gadget consists of foremost oil pump, pre-oil feed pump, oil filter, centrifuge filter, control, regulating valve and oil pipe. Pre-oil feed pump is furnished to make sure force phase lubricating earlier than start.
Air consumption and exhaust system
Air consumption and exhaust machine includes: wilderness air filter, pipes. To enhance consumption air density and output power.
Starting system
600kW fuel turbines outfitted with compressed air beginning gadget or electrical beginning system.
Ignition system
Ignition machine consists of digital ignition, excessive stress wire and spark plug, and all of them belong to well-known world make products(Motortech from Germany).
Features of 600kW Natural Gas Generator Sets
600GF-T herbal fuel generator set adopts Siemens science alternator, manipulate panel of SIVAC primarily based on GB2820-1997.JB/T 9583.1-1999 and IEC439, executing ISO9001 Quality system.
After Sale Service
1、Pre-sales technical consultation

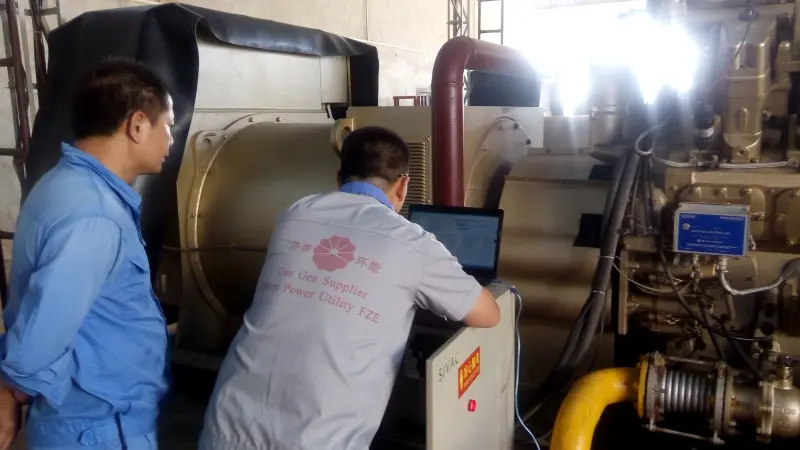

2、Technical services during sales, debugging and installation
3、After-sales service within 24/7 hours

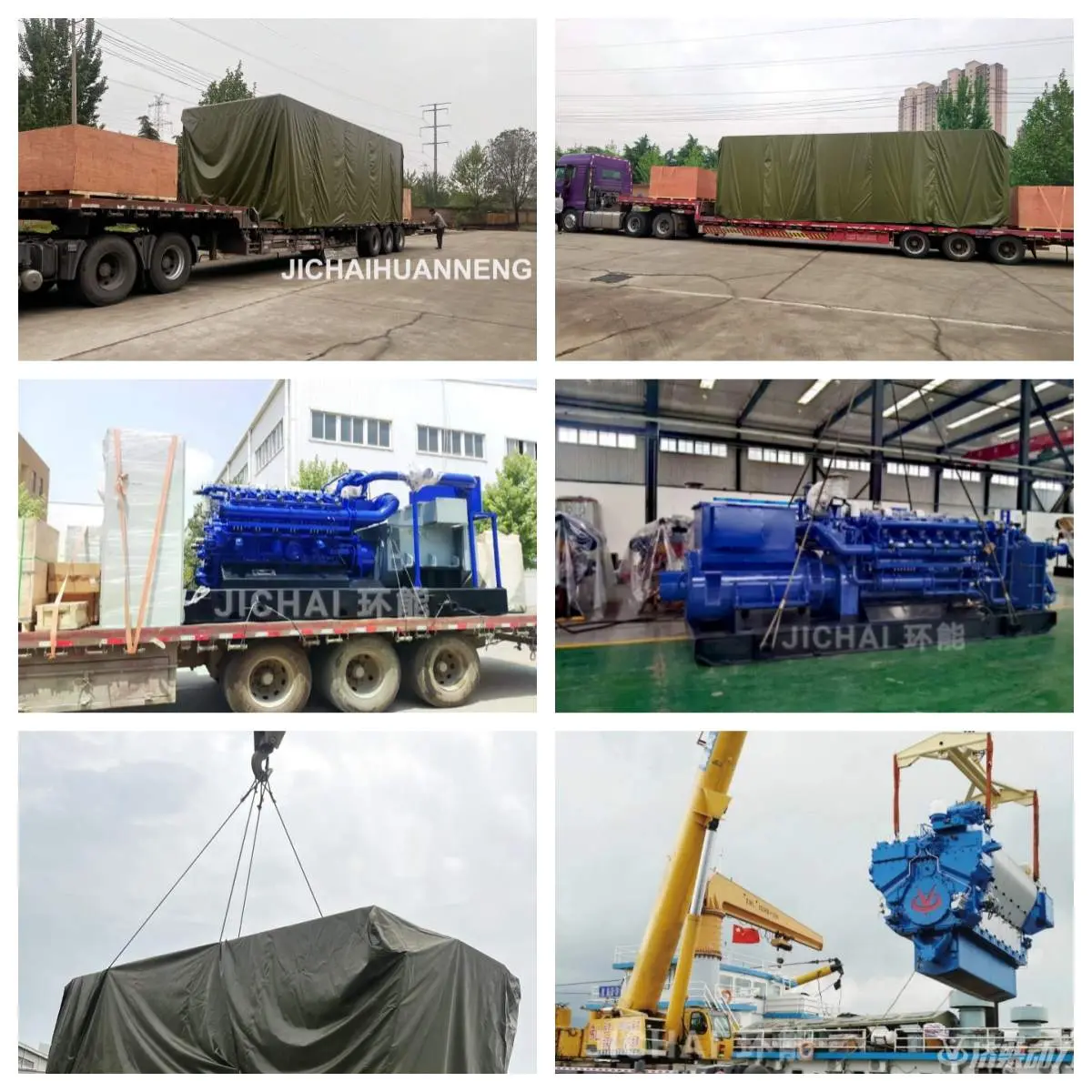

Packing&Delivery
Professional customized wooden boxes, export wooden boxes, moisture-proof and waterproof, can effectively solve long-distance sea transportation, maximizing the protection of products from external environmental influences during long-term sea transportation, and avoiding product rust.

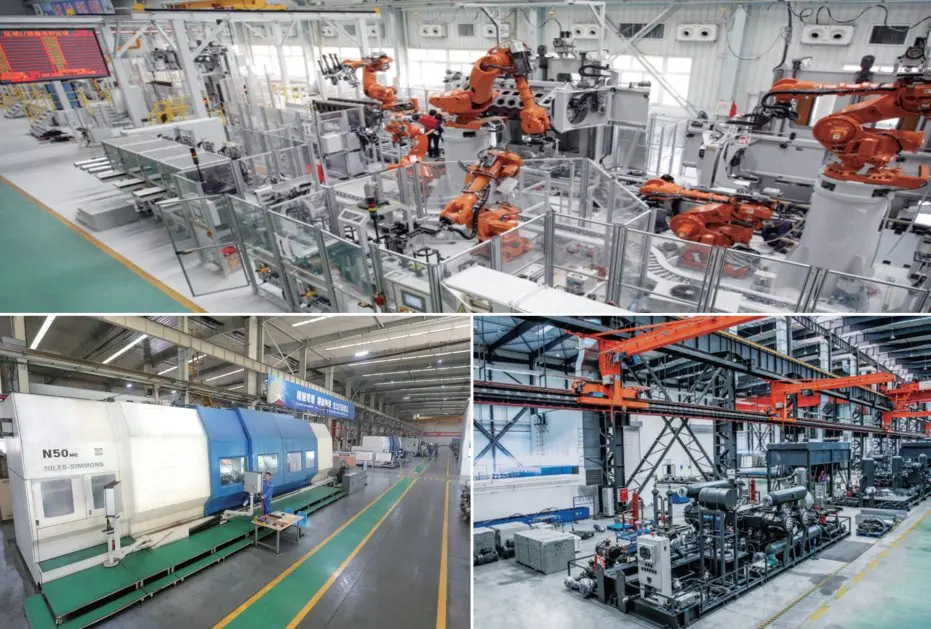

Production line
Advanced generator production and assembly equipment
High precision machining of 5C parts
International cooperation in professional components
Precision final assembly
Advanced experimental methods
Exhibition
Actively participating in the Nigerian China Commodity Exhibition is an important way for our company to develop the African market and a good platform for economic and trade cooperation and exchanges between China and Africa
