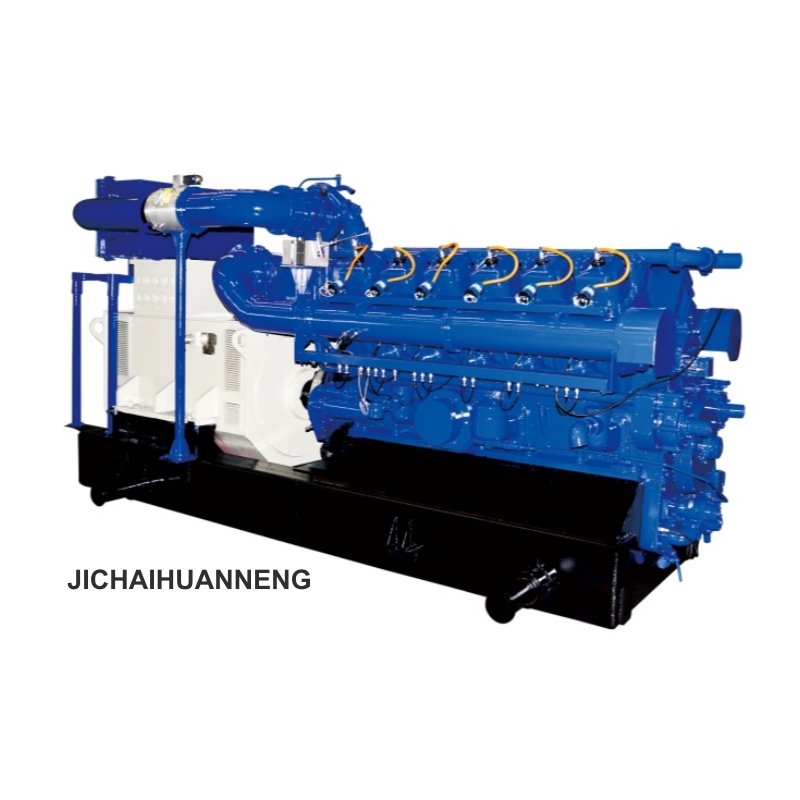

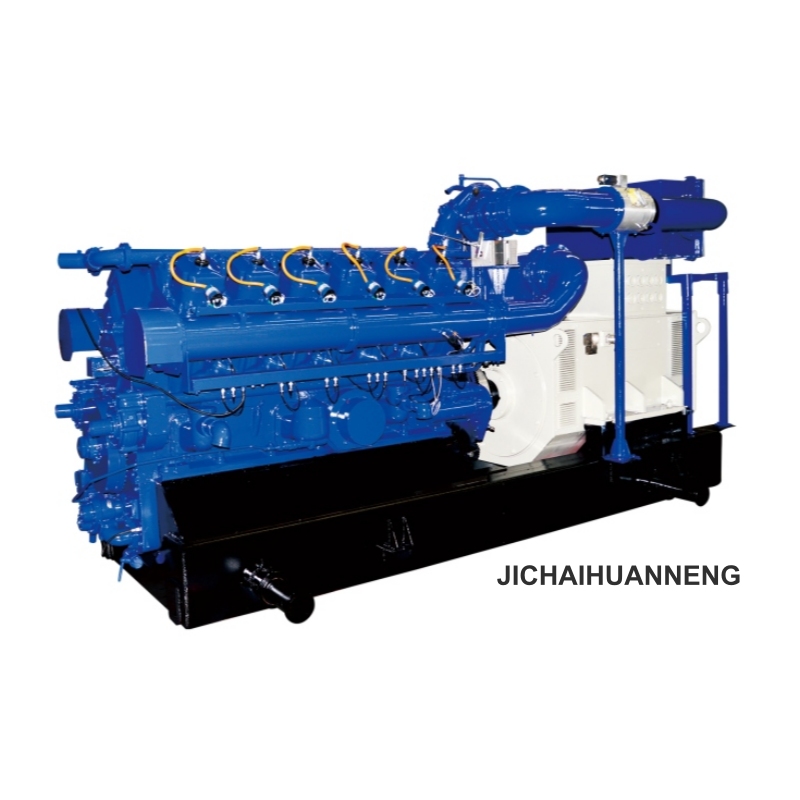

700kW Methane Gas Engine Generator Set
Generator Model：700GF-T natural gas engine-generator adopts Jichai 12V190 Engine and Siemens technology alternator
Basic Equipment:Natural gas engine;Alternator;Coupler;Air Inlet and exhaust System;Silencer;Locating Control Cabinet ;Local monitoring cabinet
Advantages：High Efficiency；Easy operation；Low consumption；
700GF-T natural methane gas engine-generator adopts Jichai 12V190 Engine and Siemens technology alternator.
Basic Equipment
①Natural gas engine
②Alternator
③Coupler
④Air Inlet and exhaust system
⑥Silencer
⑦Locating control cabinet
⑧Local monitoring cabinet
Main Specification of 700KW Natural Gas Generator
Type | 700GF-T |
Rated Power,kW | 700 |
Rated Voltage,V | 440 |
Rated Frequency,Hz | 60 |
Rated Power Factor,cosφ | 0.8（lagging） |
Supply Connecting | 3 phases 3 wires/3 phases 4 wires |
Rated Speed,r/min | 1000/1200 |
Eng. Oil consumption,g/kw h | ≤0.3 |
Efficiency,% | 38 |
Starting Method | DC24V Electric |
Natural gas pressure (kPa) | 100～400 |
Noise,dB（A） | ≤105 |
Ref. Overall Dim.(LBH),mm | 6000×2200×2400 |
Ref. Weight,kg | 14500 |
Main Specification of 700KW Natural Gas Engine
Type | 12V190ZL |
Number of cylinders | 12 |
Cylinder Arrangement | Vee, 60° |
Cylinder diameter x stroke, mm×mm | 190×210 |
Total Displacement, L | 71.45 |
Intake Type | Turbocharged and inter cooler |
Rated Power, kW | 750 |
Rated Speed, r/min | 1000/1200 |
Exhaust Temperature before turbocharger, ℃ | ≤630 |

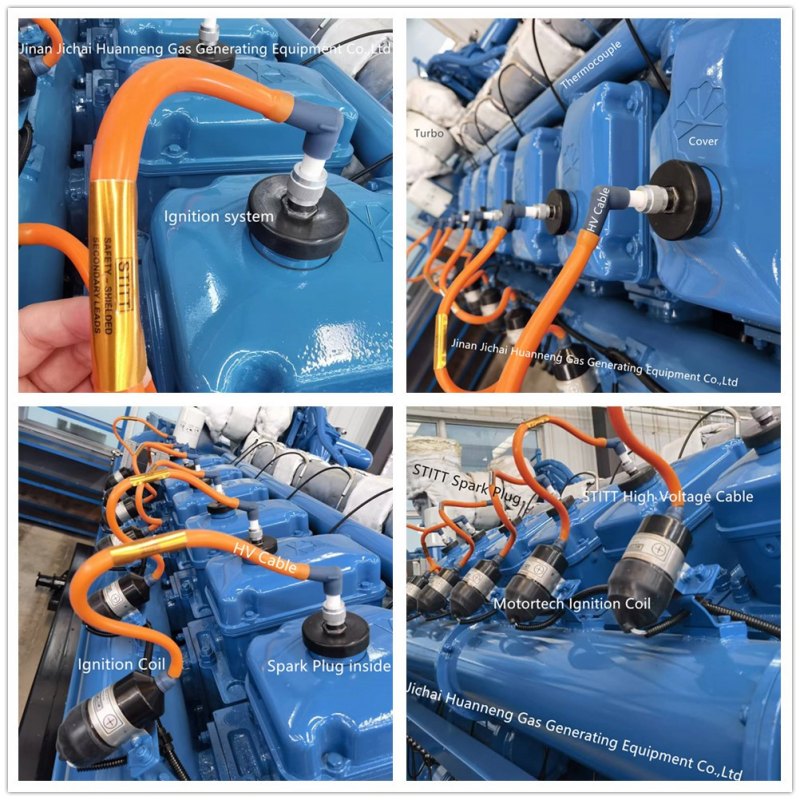

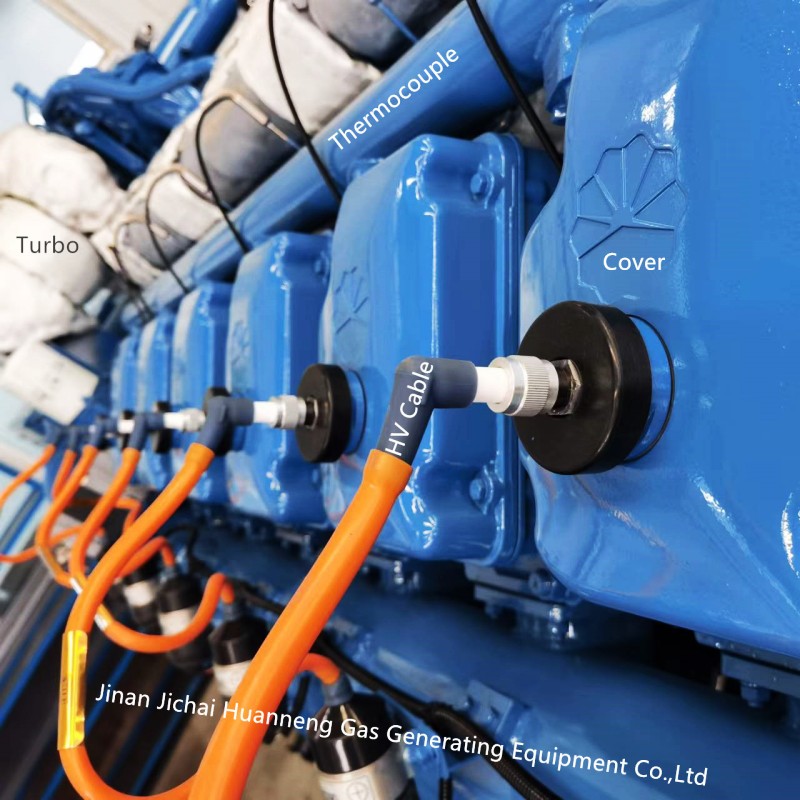

Product Details
Certification

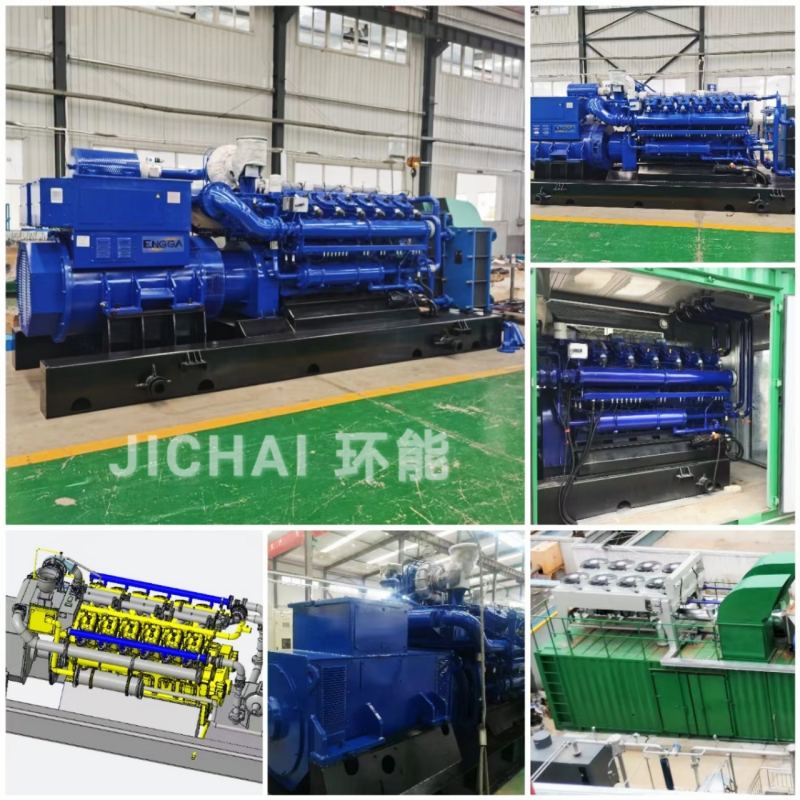

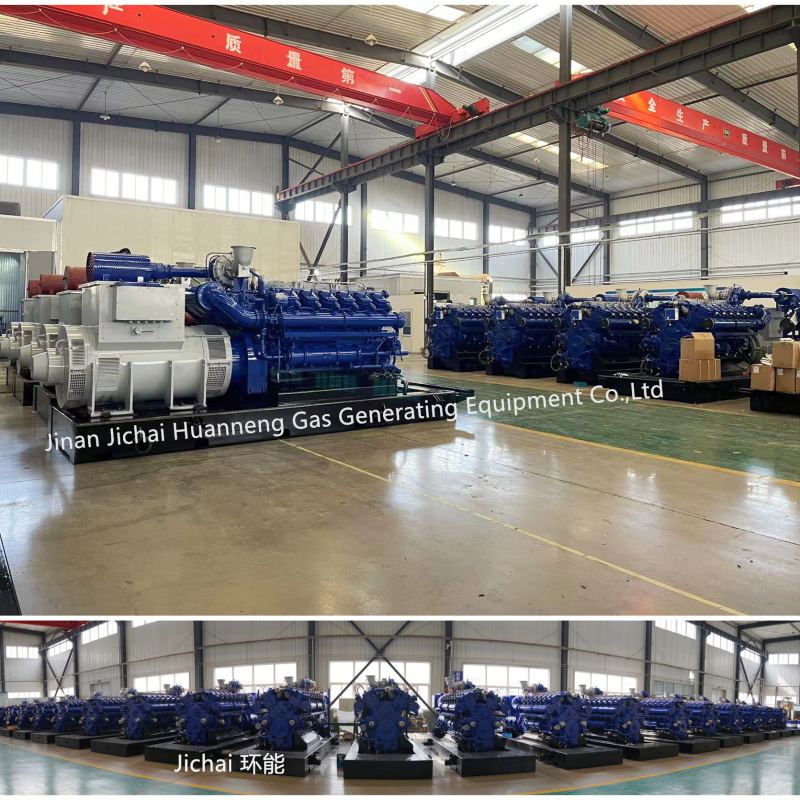

Product Line
Package And Delivery
Our Team
If you are interested in 700kW gas engine generator，pls contact me.
Whatsapp：+8617753129375
E-maill：anna_jichai@126.com
