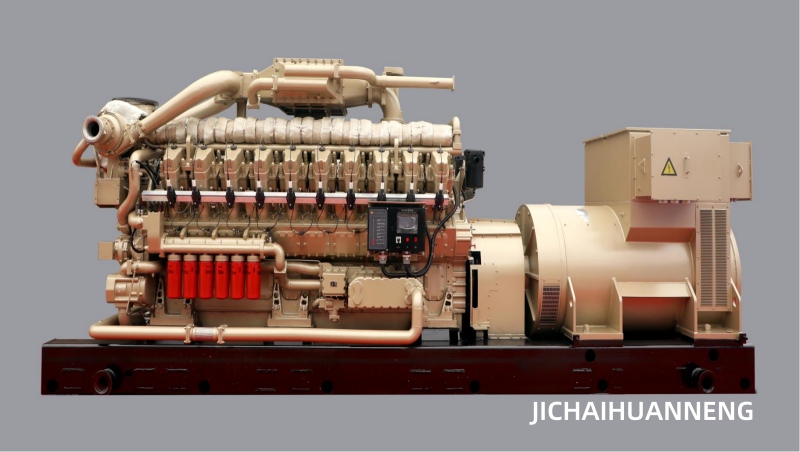

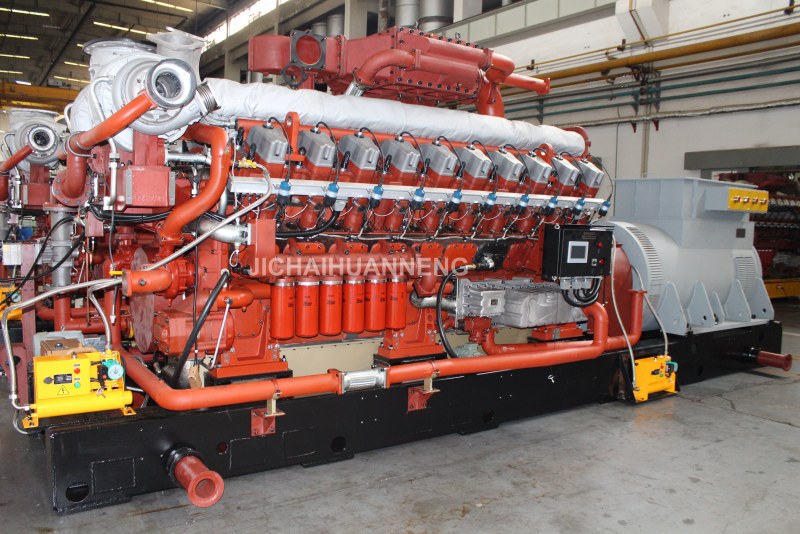

L20V200ZLT-2 Natural Gas Engine
2000kW natural gas generator set adopts L20V200ZLT-2 gas engine,which is designed and manufactured by JICHAI with the 16V gas engine as the model sample. It is a high performance 20V gas engine which can adopt to low pressure fuel gas、high intelligence、low heat consumption、high stability、low emission and long using life.
2000kW natural gas generator set adopts L20V200ZLT-2 gas engine,which is designed and manufactured by JICHAI with the 16V gas engine as the model sample. It is a high performance 20V gas engine which can adopt to low pressure fuel gas、high intelligence、low heat consumption、high stability、low emission and long using life.
Gas Generator Set | ||
Genset model | 2200GF20-T | |
Gas engine model | L20V200ZLT-2 | |
Rated power | 2200KW | |
Rated frequency | 50Hz | |
Rated power factor | 0.8（Lag） | |
Electric efficiency | 40% | |
Cooling mode | Water cooling | |
Operating mode | Electric control | |
Connection model | ||
Stabilized voltage regulation | <±2.5% | |
Voltage fluctuation | ±0.5% | |
Instantaneous voltage regulation | -15%～+20% | |
Voltage recovery time | 1.5s | |
Stabilized frequency regulation | 0～5%（adjustable） | |
Frequency fluctuation | 0.5% | |
Instantaneous frequency regulation | ±10% | |
Frequency recovery time | 7 s | |
Overall Dimensions | 7500 X 2300 X 2800 mm | |
Weight | 28t（without radiator） | |
Gas Engine Data | ||
Model | L20V200ZLT-2 | |
Fuel gas | Natural gas | |
Type | Four stroke，spark plug ignition, water cooled, turbo-turbocharged and after-cooled. | |
No. of Cylinder & Cylinder arrangement | 20 cylinder, V type | |
Bore ×Stroke | 200mm×255mm | |
Rated speed | 1000r/min | |
Rated power | 2320kW | |
Gas supply pressure | 1～4bar | |
Lub-oil consumption | ≤0.3 g/kW·h | |
Lubrication method | Pressure and splash lubrication | |
Starting method | Electric starter/Air motors starter | |
Direction of rotation | Counter-clockwise(facing to flywheel) | |
Alternator Data | ||
Rated power | 2200kW | |
Rated voltage | 6.3kV | |
Rated current | 252A | |
Rated frequency | 50Hz | |
Power factor | 0.8 (lag) | |
Rated speed | 1000r/min | |
Connection mode | Y | |
Insulation grade | H | |
Altitude | ≤1000m | |
Protection level | IP23 | |
Ventilation mode | Self ventilation(IC01) | |
Excitation mode | Permanent self-excitation and constant voltage ( AVR) （AVR） | |
Direction of rotation | Clockwise (viewed from the drive end of the generator) | |
System Introduction

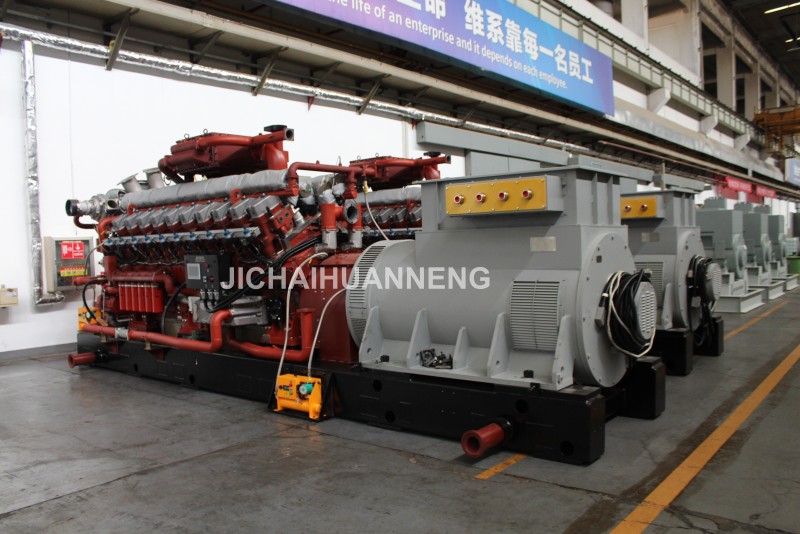

The genset system consists of natural gas engine, generator, common chassis, high elastic coupling, control cabinet and so on. The system is equipped with a perfect system of natural gas inlet, electric or air starting(depend on customer) and electrical control, vibration detection, knock detection and other systems. The generator adopts synchronous AC brushless excitation generator.
Certification

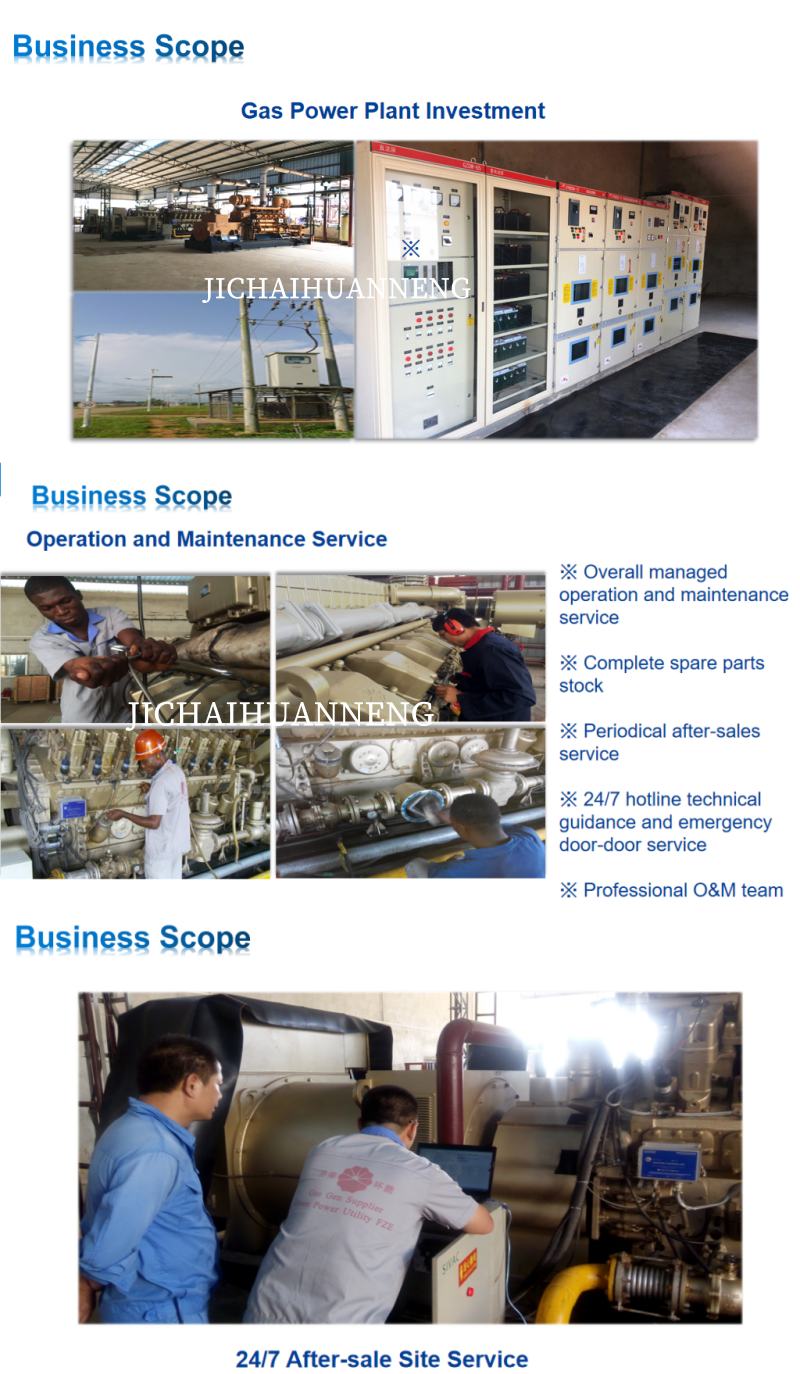

Business scope

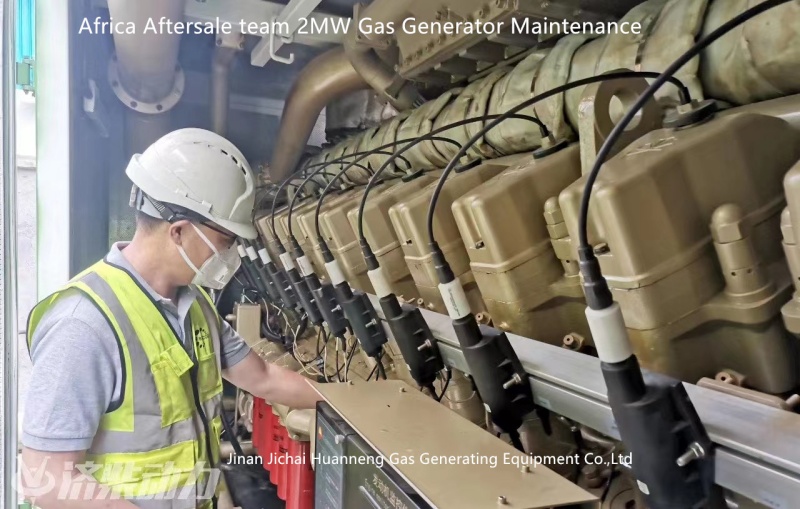

After sale

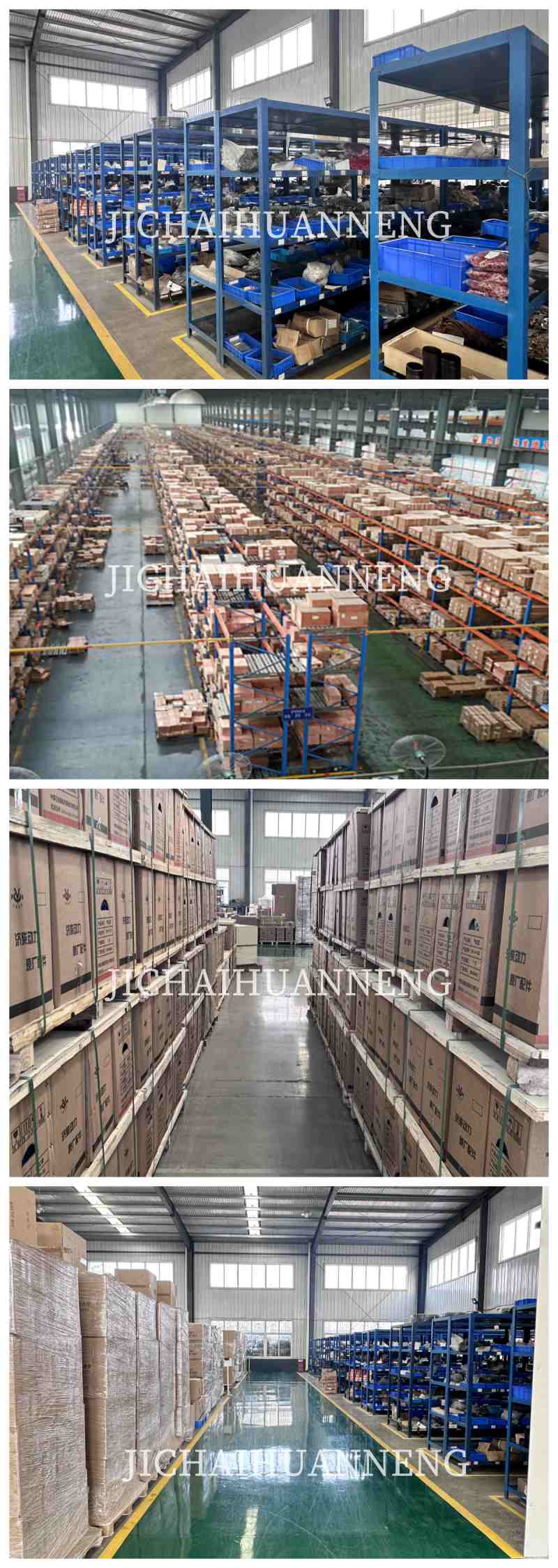

Warehouse

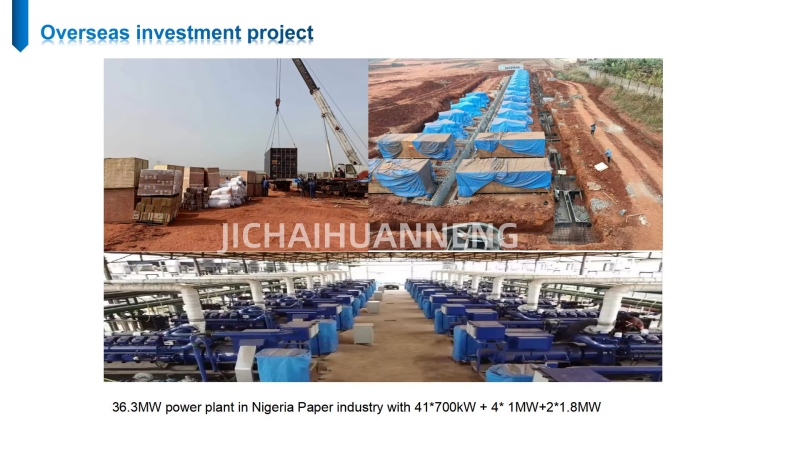

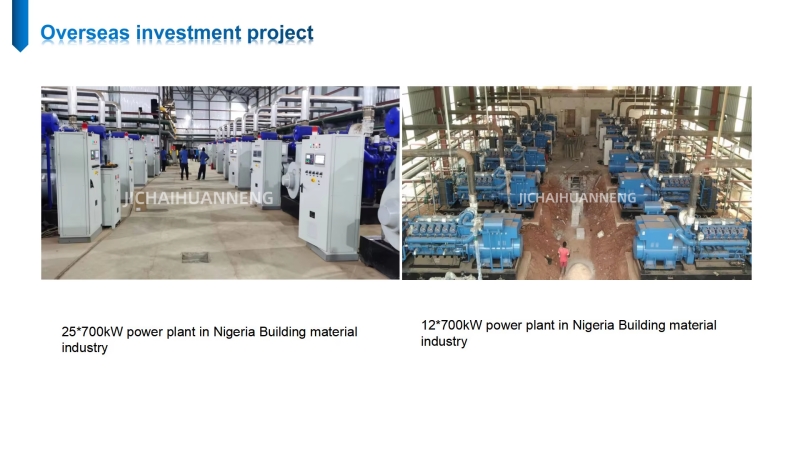

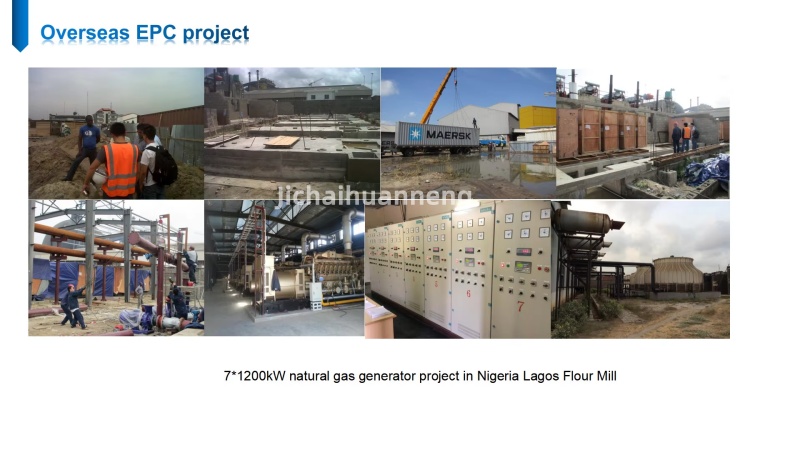

Project cases
