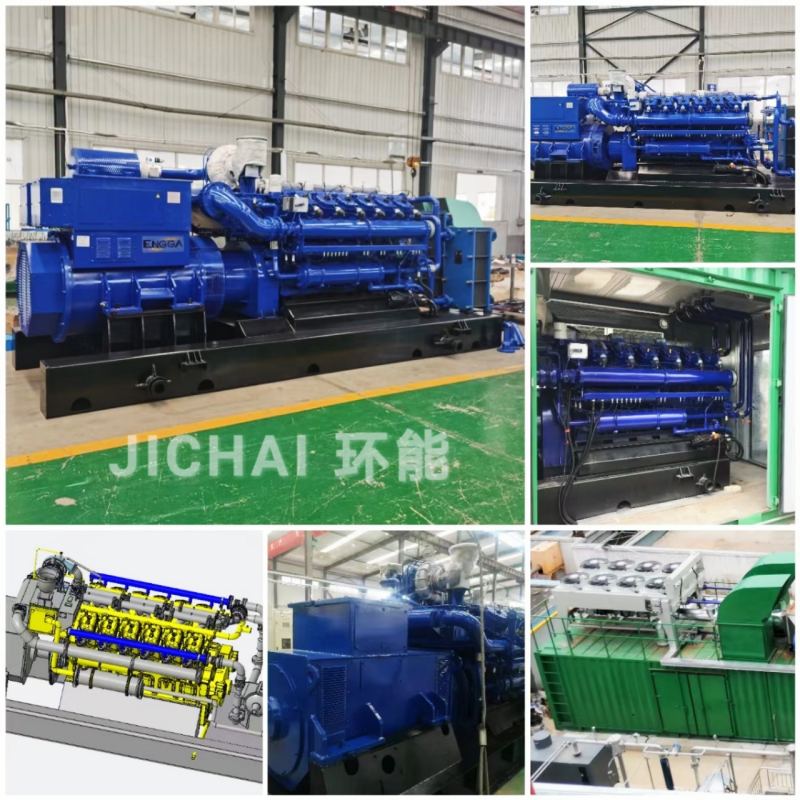

L12V200ZLT-2 biogas engine generator
Engine Design
- Intellectual Property belong to Jichai
- Triaxiality Finite Element Analysis
- Longer Stroke, More displacement
- Low Speed (1000RPM), More Reliable
- Advanced World Standard Performance
Generator
- Brushless Excitation
- AVR
- Better Insulation and Protection
Safety
- Low Oil Pressure Auto Stop Protection
Over Speed Auto Stop Protection

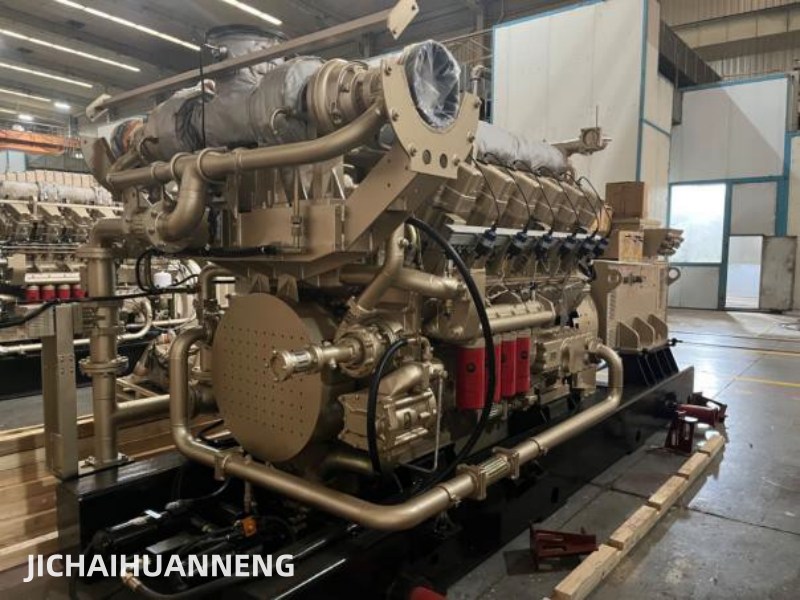

L12V200ZLT-2 biogas engine is adopted advanced governor of American WOODWARD Company. It is the engine that mixes air and fuel before turbocharger. The power performance, fuel economy and reliability of the gas engine reach world advanced level by adopting world advanced outer mixing mode, electronic control technology and lean-burnt strategy.
This genset have the features of accurate voltage regulating, good dynamic performance, less voltage waveform distortion, high efficiency, compact structure, easy to maintain, low speed, reliable and long-life operation and cost-effective.
Main specification of gas generator
Genset model | 1000GF-Z |
Alternator model | Brushless excitation,Automatic voltage regulation. |
Panel model | GPL1000 |
Rated power | 1000KW |
Rated voltage | 400V/480V/6300V/10500V/13800 |
Rated frequency | 50/60HZ |
Electrical efficiency | ≥36% |
Rated power factor | 0.8 |
Wiring mood | 3 Phase 4 Wire/3 Phase 3 Wire |
Stabilized voltage regulation | ±2.5% |
Voltage stabilization time | ≤1.5s |
Fluctuation rate of voltage | ≤1% |
Stabilized frequency regulation | 0-5% |
Frequency stabilized time rate | ≤7s |
Fluctuation rate of frequency | ≤0.5% |
Overall dimension | 6198mm*2540mm*2180mm |
Net weight | 21000kg |
Main specification of gas engine
Engine model | G12V200ZLZ-2 |
Type | Four strokes,Vshape，turbocharged intercooling，spark plug ignition. |
Number of cyliner | 12 |
Bore | 200mm |
Stoke | 255mm |
Total displacement | 96.1L |
Rated speed | 1000/1200r/min |
Rated power | 1200KW |
Idle speed | 700r/min |
Gas pressure | 10-40KPa |
Gas consumption | ≤9000kJ/kW·h |
Oil consumption | ≤0.45g/kW·h |
Exhaust tem.(before turbine） | ≤650℃ |
Water oulet temperature | ≤85℃ |
Water inlet temperature of intercooler | <45℃ |
Oil temperature | <90℃ |
Stabilized speed droop | ≤5% |
Cooling mood | Open type-cooling tower/closed type-vertical or horizontal radiator |
Lubrication method | Pressure and splash lubrication |
Starting mood | Electric Start |
Crankshaft rotation | Counter-clockwise（face to flywheel） |
Overhaul period | 50000h |
Certification
